5 Consider The Circuit Diagram Shown Below A Use Nodal Analysis To Determine V And V B What Is The Power Deliver 1 (17.06 KiB) Viewed 53 times
Please solve both A and B with clear steps. Will upvote.

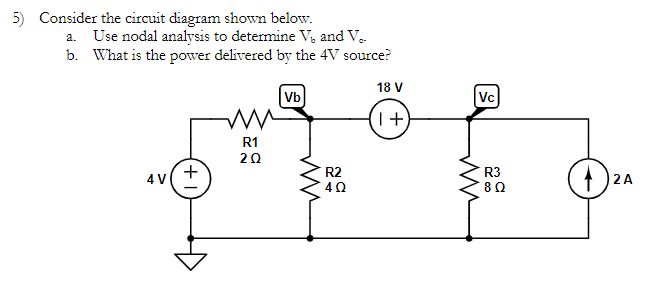

5) Consider the circuit diagram shown below. a. Use nodal analysis to determine V., and V.. b. What is the power delivered by the 4V source? 4 V + W ww R1 20 Vb ww R2 4Q 18 V 1+ m Vc R3 8 Ω D² 2 A
