Q6: In the circuit shown in Figure-6, input voltage 15u(t) is an unit step function i.e. 15u(t)= 15 V at t≥0, and equal

[answerhappygod]

Q6 In The Circuit Shown In Figure 6 Input Voltage 15u T Is An Unit Step Function I E 15u T 15 V At T 0 And Equal 1 (31.34 KiB) Viewed 42 times

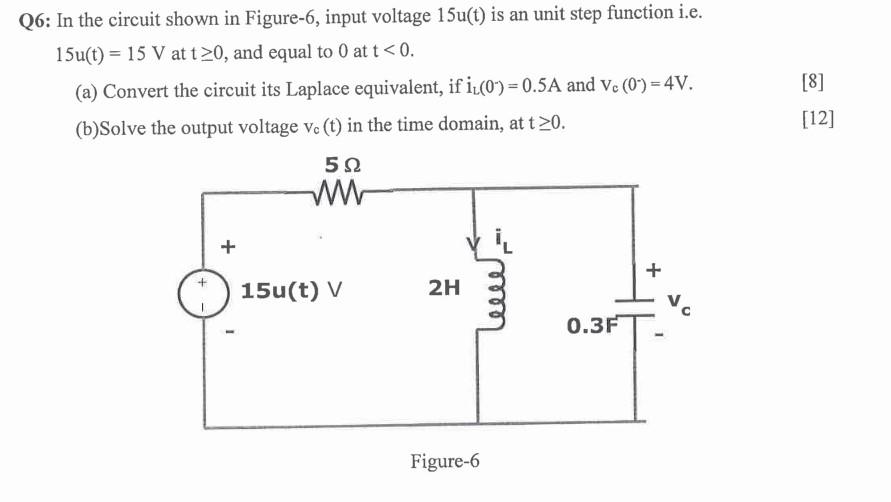

Q6: In the circuit shown in Figure-6, input voltage 15u(t) is an unit step function i.e. 15u(t)= 15 V at t≥0, and equal to 0 at t < 0. (a) Convert the circuit its Laplace equivalent, if i(0) = 0.5A and Vc (0)=4V. (b)Solve the output voltage v. (t) in the time domain, at t >0. 5Ω + 15u(t) V 2H Figure-6 0.3F + [8] [12]
