16-Elec-A1-December 2020 Q6: A In the circuit shown in Figure-6, the switch was in position A for a long time. At t=0, t

Post by answerhappygod »

16 Elec A1 December 2020 Q6 A In The Circuit Shown In Figure 6 The Switch Was In Position A For A Long Time At T 0 T 1
16 Elec A1 December 2020 Q6 A In The Circuit Shown In Figure 6 The Switch Was In Position A For A Long Time At T 0 T 1 (40.55 KiB) Viewed 39 times

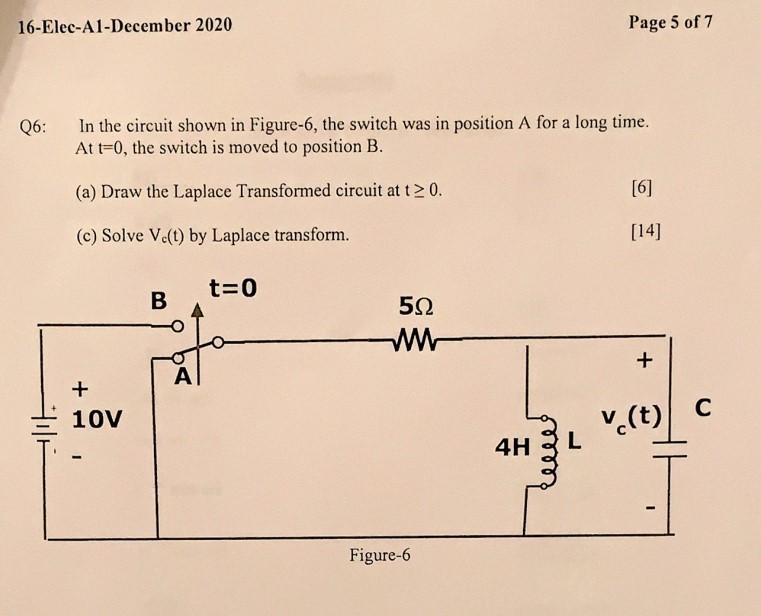

16-Elec-A1-December 2020 Q6: A In the circuit shown in Figure-6, the switch was in position A for a long time. At t=0, the switch is moved to position B. (a) Draw the Laplace Transformed circuit at t≥ 0. (c) Solve Ve(t) by Laplace transform. + 10V B t=0 fa A 5Ω www Figure-6 Page 5 of 7 4H [6] [14] + v (t) C
