Q6: In the circuit shown in Figure-6, the switch was initially open. At t = 0, it is closed. The initial current in the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q6: In the circuit shown in Figure-6, the switch was initially open. At t = 0, it is closed. The initial current in the

Post by answerhappygod »

Q6 In The Circuit Shown In Figure 6 The Switch Was Initially Open At T 0 It Is Closed The Initial Current In The 1
Q6 In The Circuit Shown In Figure 6 The Switch Was Initially Open At T 0 It Is Closed The Initial Current In The 1 (33.18 KiB) Viewed 51 times

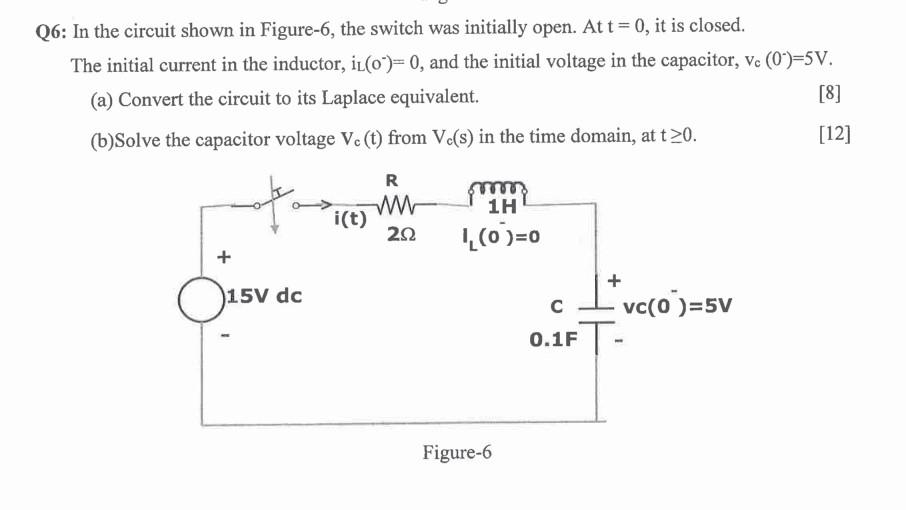

Q6: In the circuit shown in Figure-6, the switch was initially open. At t = 0, it is closed. The initial current in the inductor, iL(o)= 0, and the initial voltage in the capacitor, vc (0°)=5V. (a) Convert the circuit to its Laplace equivalent. (b)Solve the capacitor voltage Vc (t) from Ve(s) in the time domain, at t≥0. + 015V 15V dc i(t) R ww 202 1H 1(0)=0 Figure-6 C 0.1F T- 1 vc(0)=5V [8] [12]
