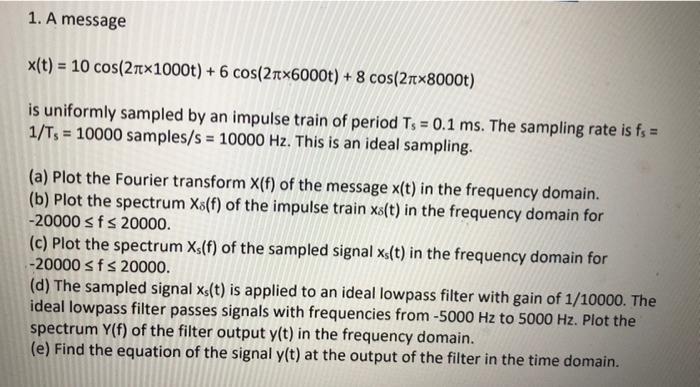

1. A message x(t) = 10 cos(2лx1000t) + 6 сos(2x6000t) + 8 сos(2лx8000t) is uniformly sampled by an impulse train of period Ts = 0.1 ms. The sampling rate is fs = 1/T₁= 10000 samples/s = 10000 Hz. This is an ideal sampling. (a) Plot the Fourier transform X(f) of the message x(t) in the frequency domain. (b) Plot the spectrum Xs(f) of the impulse train xs(t) in the frequency domain for -20000 ≤ f≤ 20000. (c) Plot the spectrum Xs(f) of the sampled signal xs(t) in the frequency domain for -20000 sf≤ 20000. (d) The sampled signal xs(t) is applied to an ideal lowpass filter with gain of 1/10000. The ideal lowpass filter passes signals with frequencies from -5000 Hz to 5000 Hz. Plot the spectrum Y(f) of the filter output y(t) in the frequency domain. (e) Find the equation of the signal y(t) at the output of the filter in the time domain.
