(b) (c) The circuit shown below uses multi-transistor configurations (S₁). Use ß = 100, and Is=5x10-¹7A for both Q₁ and

Post by answerhappygod »

B C The Circuit Shown Below Uses Multi Transistor Configurations S Use Ss 100 And Is 5x10 7a For Both Q And 1
B C The Circuit Shown Below Uses Multi Transistor Configurations S Use Ss 100 And Is 5x10 7a For Both Q And 1 (163.43 KiB) Viewed 49 times

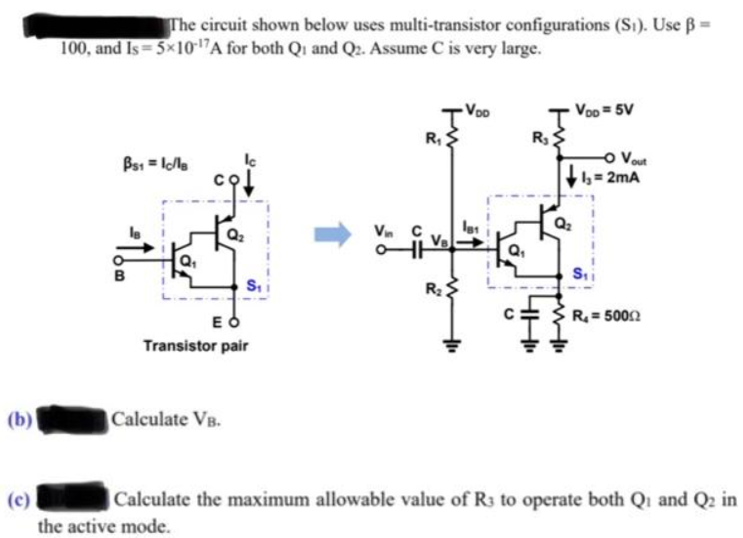

(b) (c) The circuit shown below uses multi-transistor configurations (S₁). Use ß = 100, and Is=5x10-¹7A for both Q₁ and Q2. Assume C is very large. Bs1 = Ic/la Q₁ EO Transistor pair Calculate VB. S₁ the active mode. Vin C Tvoo R₁ HH R₂ 18₁ R₂ VOD=5V -O Vout l₂ = 2mA S₁ R₁ = 5000 Calculate the maximum allowable value of R3 to operate both Q₁ and Q2 in
