In the circuit shown below a. Write a node equation at node 2. b. Write a node equation at node 1. c. Find the transfer

Post by answerhappygod »

In The Circuit Shown Below A Write A Node Equation At Node 2 B Write A Node Equation At Node 1 C Find The Transfer 1
In The Circuit Shown Below A Write A Node Equation At Node 2 B Write A Node Equation At Node 1 C Find The Transfer 1 (26.24 KiB) Viewed 51 times

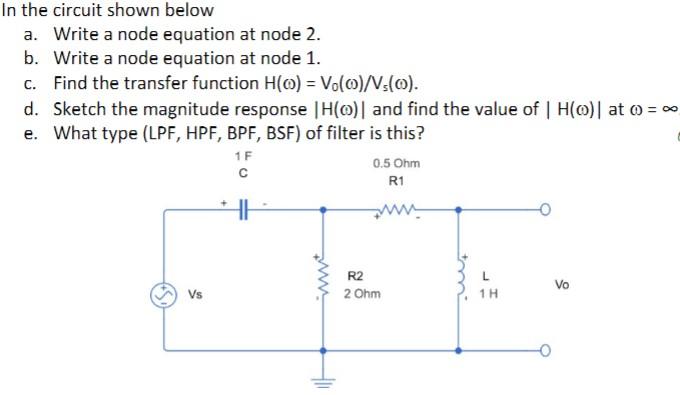

In the circuit shown below a. Write a node equation at node 2. b. Write a node equation at node 1. c. Find the transfer function H(o) = Vo(0)/Vs(0). d. Sketch the magnitude response |H(0)| and find the value of | H(o)| at = ∞ e. What type (LPF, HPF, BPF, BSF) of filter is this? Vs 1F C HH www. R2 0.5 Ohm R1 2 Ohm L 1 H Vo
