For the circuit shown, Draw the phasor-transformed circuit a. b. Find the phasor I and time domain signal i(t). C. Find

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown, Draw the phasor-transformed circuit a. b. Find the phasor I and time domain signal i(t). C. Find

Post by answerhappygod »

For The Circuit Shown Draw The Phasor Transformed Circuit A B Find The Phasor I And Time Domain Signal I T C Find 1
For The Circuit Shown Draw The Phasor Transformed Circuit A B Find The Phasor I And Time Domain Signal I T C Find 1 (17.87 KiB) Viewed 37 times

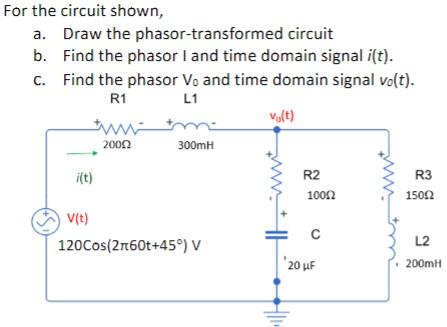

For the circuit shown, Draw the phasor-transformed circuit a. b. Find the phasor I and time domain signal i(t). C. Find the phasor Vo and time domain signal vo(t). R1 L1 vo(t) i(t) V(t) www. 20002 300mH 120Cos(2n60t+45°) V R2 10002 с 20 μF R3 15002 L2 200mH
