Problem 1: Determine whether the following cyclic circuit is combinational or sequential. Give your justification and pr

Post by answerhappygod »

Problem 1 Determine Whether The Following Cyclic Circuit Is Combinational Or Sequential Give Your Justification And Pr 1
Problem 1 Determine Whether The Following Cyclic Circuit Is Combinational Or Sequential Give Your Justification And Pr 1 (46.4 KiB) Viewed 29 times

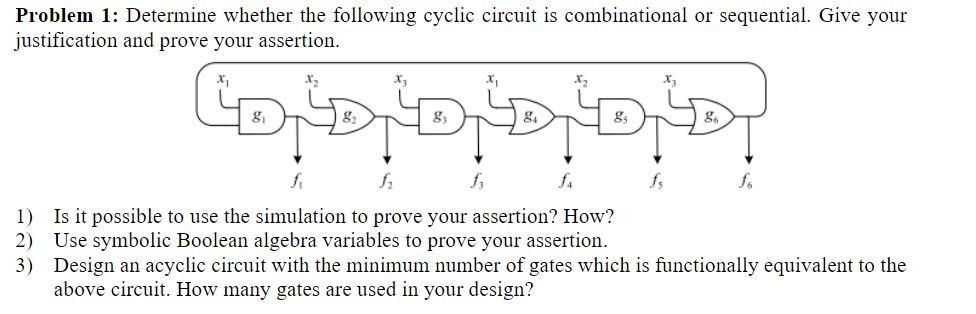

Problem 1: Determine whether the following cyclic circuit is combinational or sequential. Give your justification and prove your assertion. LODDDDD 1) 2) f f₂ £4 Is it possible to use the simulation to prove your assertion? How? Use symbolic Boolean algebra variables to prove your assertion. fo 3) Design an acyclic circuit with the minimum number of gates which is functionally equivalent to the above circuit. How many gates are used in your design?
