please use NODE VOLTAGE METHOD. I know mesh is better for this.

Post by answerhappygod »

please use NODE VOLTAGE METHOD. I know mesh is better forthis.
Please Use Node Voltage Method I Know Mesh Is Better For This 1
Please Use Node Voltage Method I Know Mesh Is Better For This 1 (70.85 KiB) Viewed 48 times

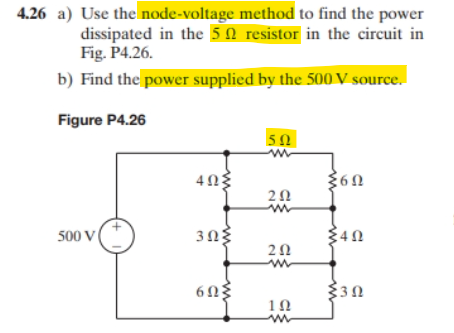

4.26 a) Use the node-voltage dissipated in the 5 Fig. P4.26. b) Find the power supplied by the 500 V source. Figure P4.26 500 V method to find the power resistor in the circuit in 4ΩΣ 3ΩΣ 6ΩΣ 5Ω ΖΩ www ΖΩ www 1Ω m ἔ6Ω 4Ω 3Ω
