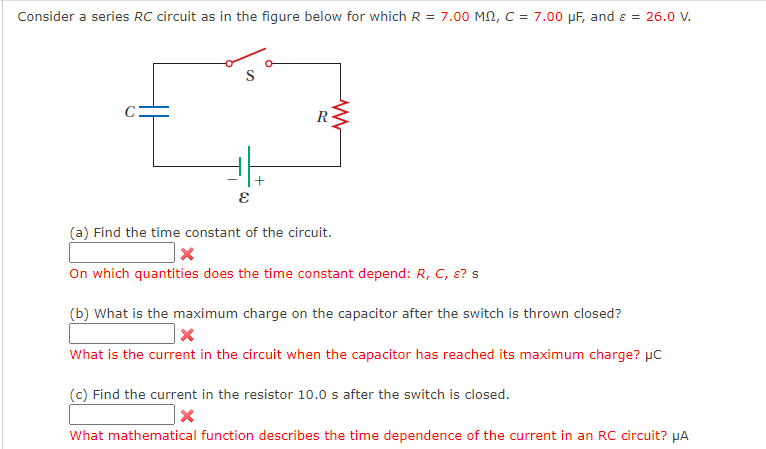

Consider a series RC circuit as in the figure below for which R = 7.00 MM, C = 7.00 μF, and ε = 26.0 V. E M (a) Find the
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Consider a series RC circuit as in the figure below for which R = 7.00 MM, C = 7.00 μF, and ε = 26.0 V. E M (a) Find the
Consider a series RC circuit as in the figure below for which R = 7.00 MM, C = 7.00 μF, and ε = 26.0 V. E M (a) Find the time constant of the circuit. X On which quantities does the time constant depend: R, C, &? s (b) What is the maximum charge on the capacitor after the switch is thrown closed? X What is the current in the circuit when the capacitor has reached its maximum charge? µC (c) Find the current in the resistor 10.0 s after the switch is closed. X What mathematical function describes the time dependence of the current in an RC circuit? µA
