a) For what frequency or range of frequencies does the network reduce the magnitude of the input voltage to one-tenth? t

[answerhappygod]

a) For what frequency or range of frequencies does the networkreduce the magnitude of the input voltage to one-tenth?tenth?(b) Knowing that the output advances the input 15°, determine𝑣𝑜𝑢𝑡(𝑡) at steady state when.V𝑖𝑛 = 5∡45° [V]?(c) Knowing that the time domain input voltage is 𝑣𝑖𝑛(𝑡) = 12𝑠𝑖𝑛(9000t + 40°) [V],What will be the value of the steady state output voltage 𝑣𝑜𝑢𝑡(𝑡)?(d) Knowing that the input voltage in the time domain is 𝑣𝑖𝑛(𝑡) =10cos2(125t) -5 [V], what is thewill be the value of the steady state output voltage 𝑣𝑜𝑢𝑡(𝑡)?

A For What Frequency Or Range Of Frequencies Does The Network Reduce The Magnitude Of The Input Voltage To One Tenth T 1 (108.05 KiB) Viewed 41 times

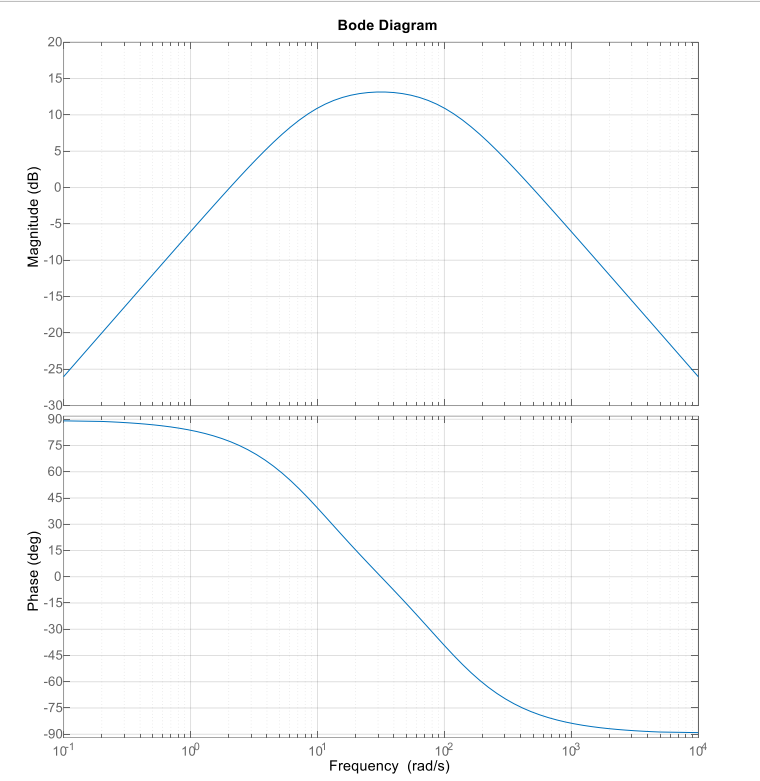

Magnitude (dB) Phase (deg) 20 15- 10- 5 2 5 -10- -15- -20- -25 -30⁰ 90F 75- 60- 45- 30- 15- -15- -30- -45- -60- -75- -90 101 T 10⁰ 10¹ Bode Diagram T T 10² Frequency (rad/s) T 10³ 104
