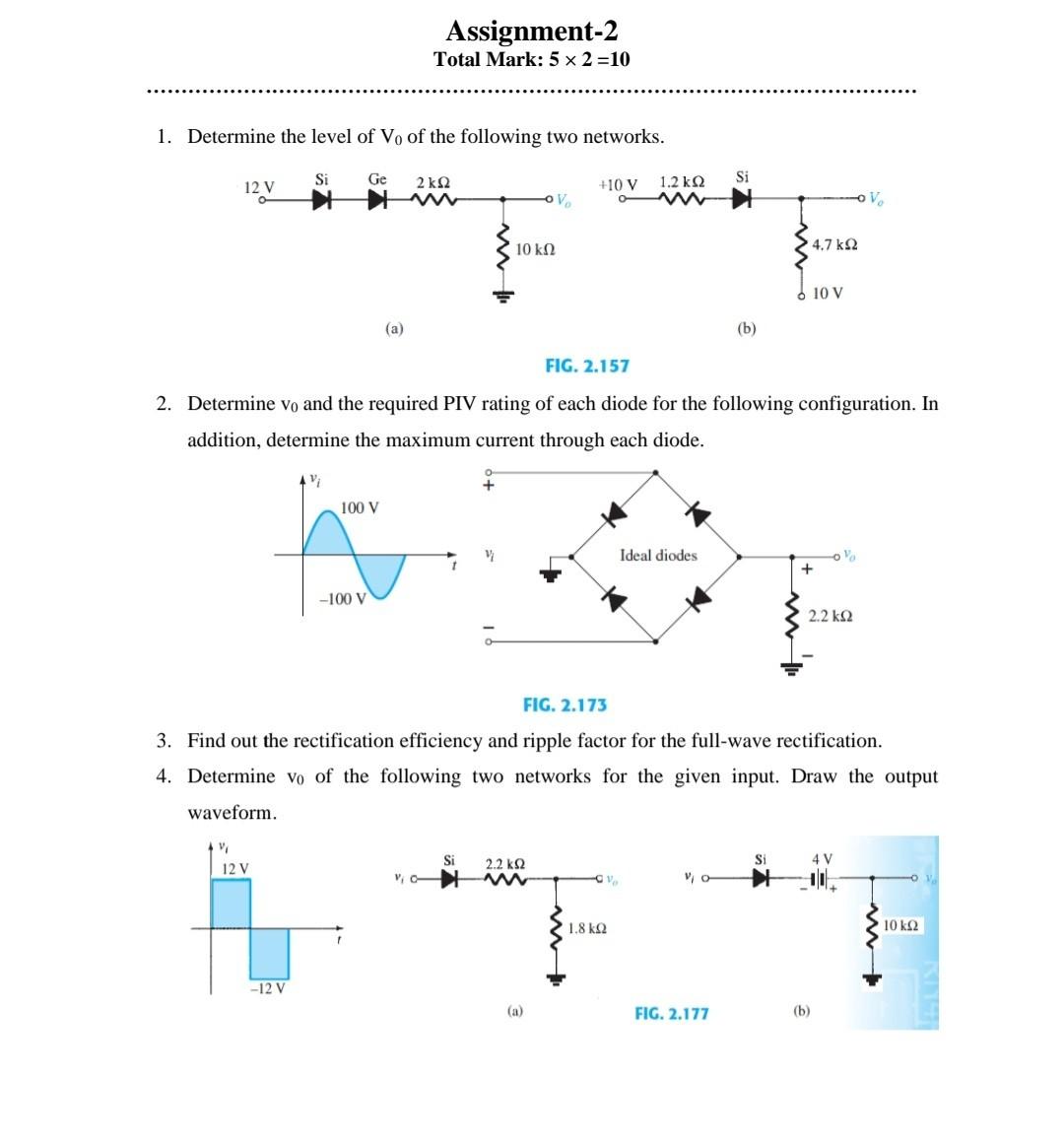

1. Determine the level of Vo of the following two networks. 12 V Si V₁ 12 V -12 V Ge 100 V -100 V Assignment-2 Total Mark: 5 x 2 =10 (a) 2kQ2 7 0- + Si V 10 ΚΩ Vo 2. Determine vo and the required PIV rating of each diode for the following configuration. In addition, determine the maximum current through each diode. 2.2 ΚΩ +10 V (a) FIG. 2.157 1.2 ΚΩ -CV 1,8 ΚΩ Ideal diodes Si FIG. 2.173 3. Find out the rectification efficiency and ripple factor for the full-wave rectification. 4. Determine vo of the following two networks for the given input. Draw the output waveform. (b) FIG. 2.177 ' 4.7 ΚΩ Si 10 V Lav 2.2 ΚΩ (b) Vo 4 V 10 k

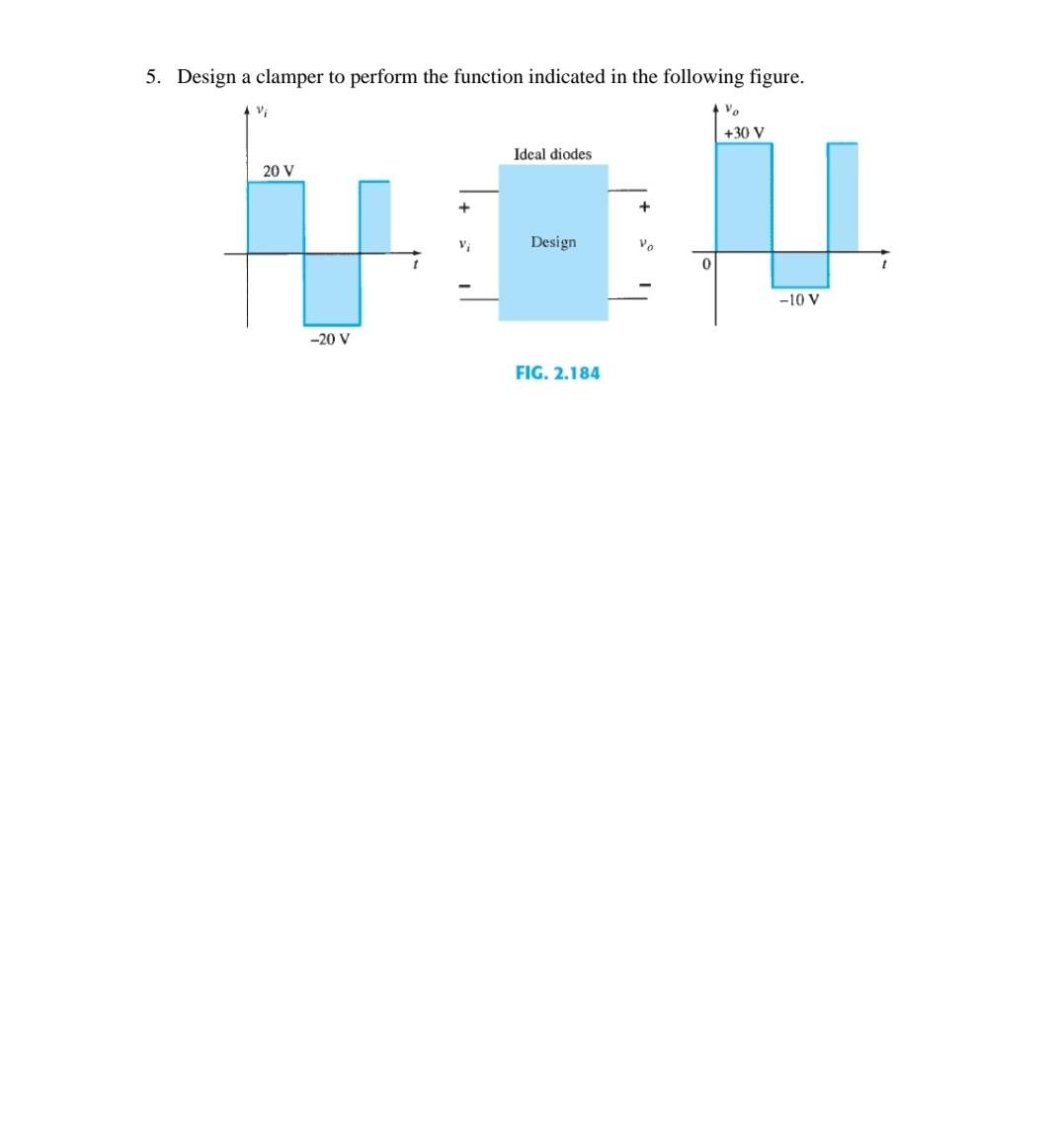

5. Design a clamper to perform the function indicated in the following figure. Vi 20 V -20 V + V₁ Ideal diodes Design FIG. 2.184 Vo 0 Vo +30 V -10 V
