2. A MOSFET circuit is shown in Fig 2a. Fig. 2b is the characteristic of the MOSFET. (24%) VGS 10MQ Ra lo 120 Ro +12V S

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

2. A MOSFET circuit is shown in Fig 2a. Fig. 2b is the characteristic of the MOSFET. (24%) VGS 10MQ Ra lo 120 Ro +12V S

Post by answerhappygod »

2 A Mosfet Circuit Is Shown In Fig 2a Fig 2b Is The Characteristic Of The Mosfet 24 Vgs 10mq Ra Lo 120 Ro 12v S 1
2 A Mosfet Circuit Is Shown In Fig 2a Fig 2b Is The Characteristic Of The Mosfet 24 Vgs 10mq Ra Lo 120 Ro 12v S 1 (200.98 KiB) Viewed 39 times

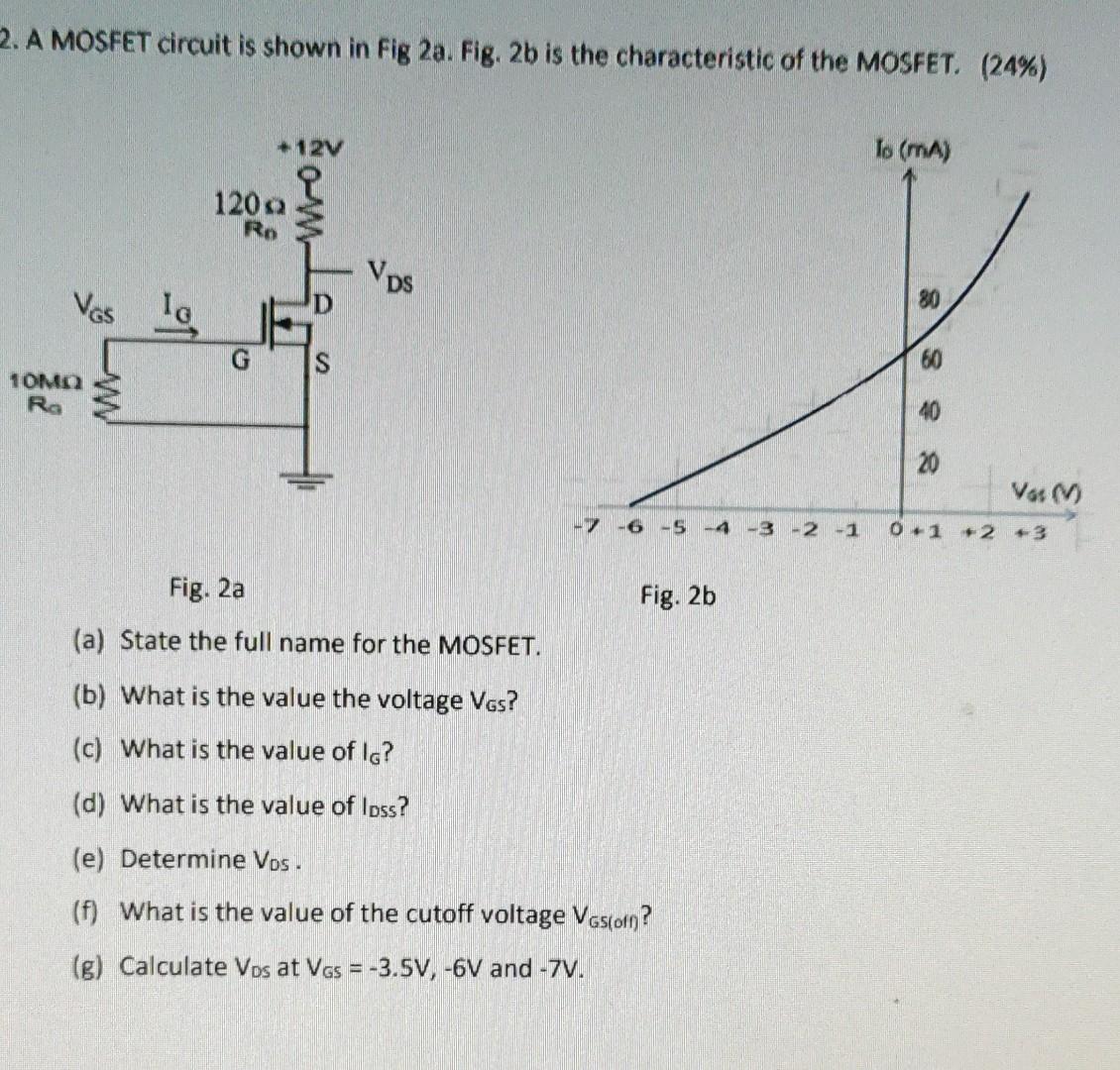

2. A MOSFET circuit is shown in Fig 2a. Fig. 2b is the characteristic of the MOSFET. (24%) VGS 10MQ Ra lo 120 Ro +12V S Vps -7 Fig. 2a (a) State the full name for the MOSFET. (b) What is the value the voltage VGs? (c) What is the value of lg? (d) What is the value of loss? (e) Determine Vos. (f) What is the value of the cutoff voltage Vas(off)? (g) Calculate Vos at VGs = -3.5V, -6V and -7V. Fig. 2b To (mA) 40 20 Vos (V) -3 -2 -1 0+1 +2 +3
