how do you know right away this is a half wave rectifier?? how can one tell! 3. An ideal diode and two resistors are arr

Post by **answerhappygod** » Sun Jul 10, 2022 11:33 am

: How Do You Know Right Away This Is A Half Wave Rectifier How Can One Tell 3 An Ideal Diode And Two Resistors Are Arr 1 (34.57 KiB) Viewed 37 times

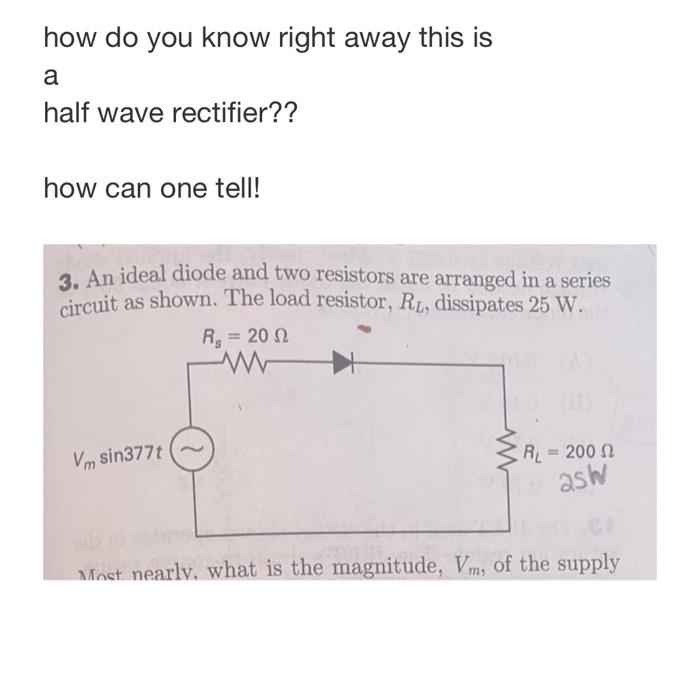

how do you know right away this is a half wave rectifier?? how can one tell! 3. An ideal diode and two resistors are arranged in a series circuit as shown. The load resistor, RL, dissipates 25 W. Vm sin377t R = 20 Ω www RL = 200 asw Most nearly, what is the magnitude, Vm, of the supply
