F7.1. a. Show that the circuit shown below behaves as a bandpass filter by finding the transfer function for this circui

[answerhappygod]

F7 1 A Show That The Circuit Shown Below Behaves As A Bandpass Filter By Finding The Transfer Function For This Circui 1 (139.75 KiB) Viewed 38 times

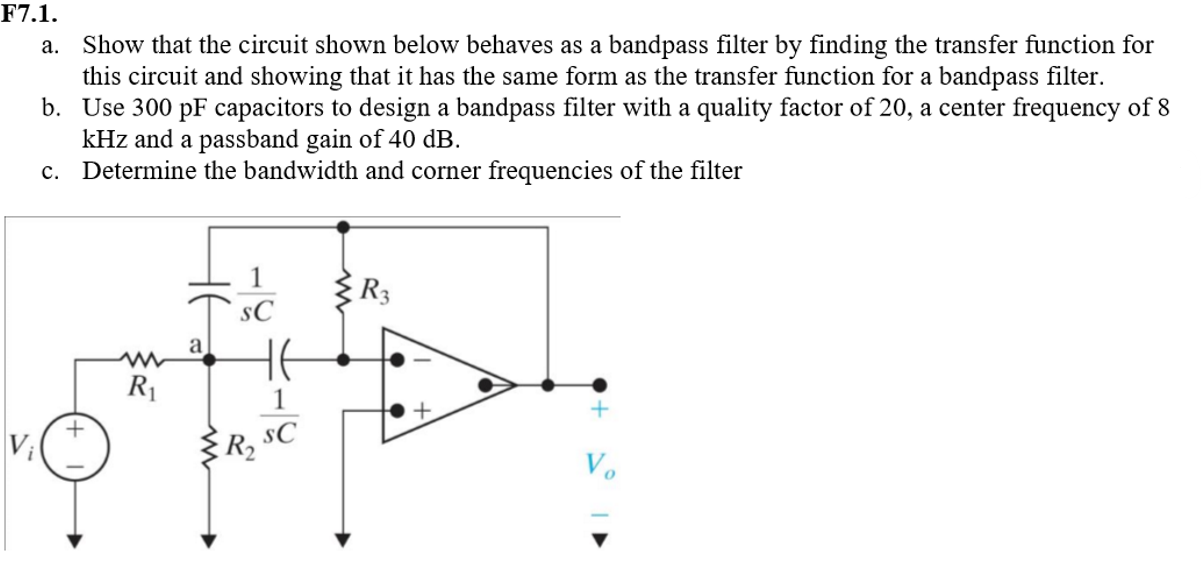

F7.1. a. Show that the circuit shown below behaves as a bandpass filter by finding the transfer function for this circuit and showing that it has the same form as the transfer function for a bandpass filter. b. Use 300 pF capacitors to design a bandpass filter with a quality factor of 20, a center frequency of 8 kHz and a passband gain of 40 dB. c. Determine the bandwidth and corner frequencies of the filter Vi + R₁ a SC HE 1 R₂ SC R3 + Vo
