a) 3. Diode Circuit Determine the current ID for all the configurations shown below using a Si-Diode. Use the simplified

Post by answerhappygod »

A 3 Diode Circuit Determine The Current Id For All The Configurations Shown Below Using A Si Diode Use The Simplified 1
A 3 Diode Circuit Determine The Current Id For All The Configurations Shown Below Using A Si Diode Use The Simplified 1 (343.37 KiB) Viewed 50 times

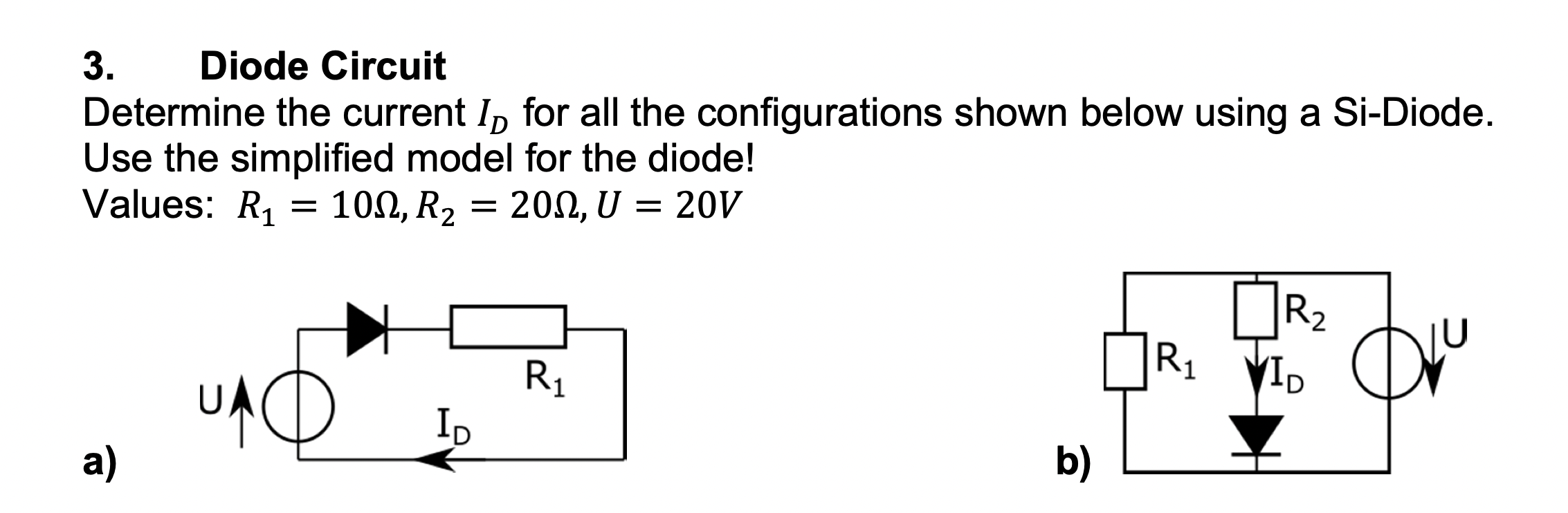

a) 3. Diode Circuit Determine the current ID for all the configurations shown below using a Si-Diode. Use the simplified model for the diode! Values: R₁ = 100, R₂ = 20N, U = 20V ID R₁ b) R₁ R2 An VID DAL Y
