answers Experts, Please help me to answer this shortquestions below in detail because I don't understand anything!Thank you so much, and have a great day!
Find gain Vo/V1 for this circuit:
Chegg Experts Please Help Me To Answer This Short Questions Below In Detail Because I Don T Understand Anything Thank 1 (30.84 KiB) Viewed 32 times
Find gain Vo/V1 and Zi and Zo (Impendances) for thiscircuit:
Chegg Experts Please Help Me To Answer This Short Questions Below In Detail Because I Don T Understand Anything Thank 2 (21.87 KiB) Viewed 32 times
Find gain Vo/V1 for this circuit:
Chegg Experts Please Help Me To Answer This Short Questions Below In Detail Because I Don T Understand Anything Thank 3 (30.84 KiB) Viewed 32 times

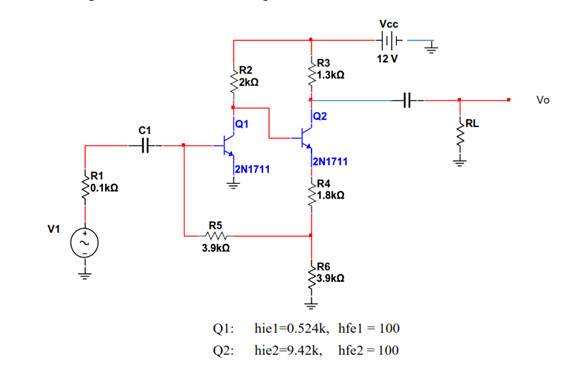

V1 R1 20.1k0 C1 수 R5 ww 3.9k SR2 >2k0 Q1 Q1: Q2: 2N1711 R3 -1.3k Q2 2N1711 -R4 -1.8k R6 -3.9km Vcc 寺 12 V 수 hiel=0.524k, hfel = 100 hie2=9.42k, hfe2 = 100 mt RL Vo

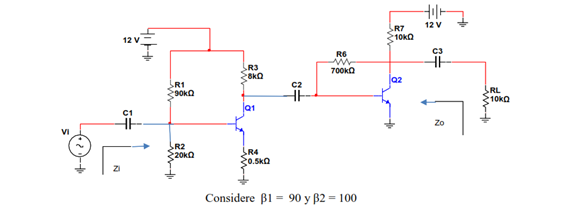

VI 12 V 5= ZI H R1 90K R2 20K R3 28kQ Q1 R4 20.5k C2 HH R6 ww 700k Considere 31 = 90 y ³2 = 100 12 V R7 10k Q2 3= Zo RL 10k int
V1 R1 20.1k0 C1 수 R5 ww 3.9k SR2 >2k0 Q1 Q1: Q2: 2N1711 R3 -1.3k Q2 2N1711 -R4 -1.8k R6 -3.9km Vcc 寺 12 V 수 hiel=0.524k, hfel = 100 hie2=9.42k, hfe2 = 100 mt RL Vo
