- Find The Following Given Generator Use 3 2500 Kva Generator 3phase 60hz And 1 Stand By Unit Pp To Point A Cable 1 (94.58 KiB) Viewed 38 times
Generator: Use 3 – 2500 kVA Generator,3phase, 60Hz and 1Stand-by Unit
PP to point A:
Cable = 3 – 300,000 CM ACSR 26/7 @50°C 60Hz, at 4.5’ spacing
R = 0.342 Ω / cond. / mile
Xa = 0.462 Ω / cond. / mile
Xd = 0.2794log(34.5)(4.5)(9))= 0.211Ω / cond. / mile
Xt = 0.462 + 0.211 = 0.673 Ω / cond./ mile
Length = 1650 ft

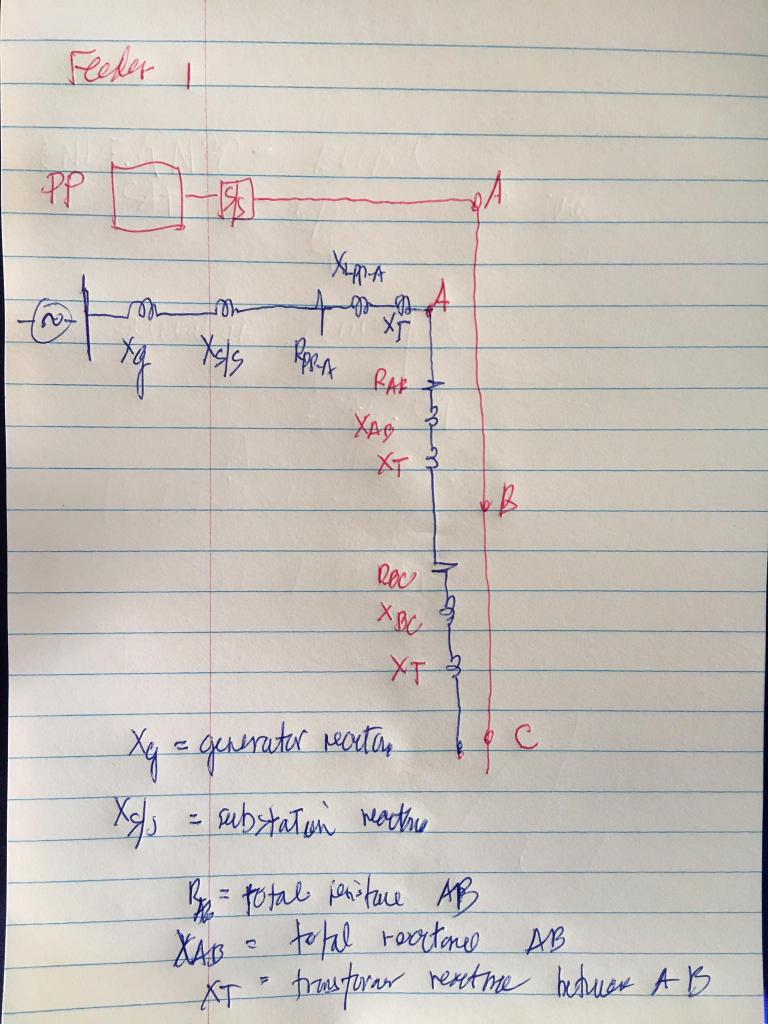

Feeder 1 PP XS/S RARA XUMA R RAP P Roc Xy = generater reactor Xg/₁ = substation mearthu XT A b B B₂ = total penitore AB XAB total revrtone AB XT transforar rexetime betwer AB Loc
