Question 1 Vin Add your answer to C₁ R₁ R₂ Given: VDD = 1.8 V, R1 = 80 kn, R2 = 100 kn, RD = 2 k2, RS = 1 KQ. W/L = 10,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 1 Vin Add your answer to C₁ R₁ R₂ Given: VDD = 1.8 V, R1 = 80 kn, R2 = 100 kn, RD = 2 k2, RS = 1 KQ. W/L = 10,

Post by answerhappygod »

Question 1 Vin Add Your Answer To C R R Given Vdd 1 8 V R1 80 Kn R2 100 Kn Rd 2 K2 Rs 1 Kq W L 10 1
Question 1 Vin Add Your Answer To C R R Given Vdd 1 8 V R1 80 Kn R2 100 Kn Rd 2 K2 Rs 1 Kq W L 10 1 (32.29 KiB) Viewed 32 times

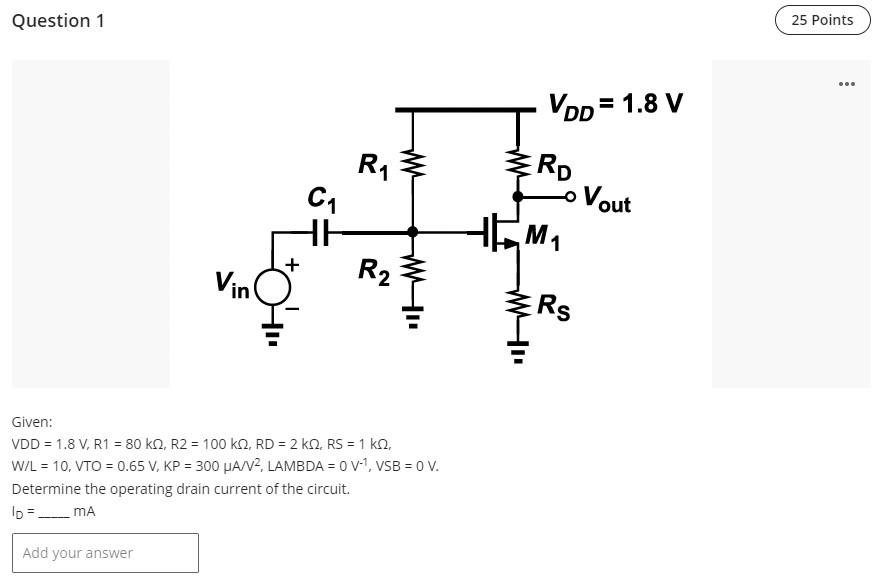

Question 1 Vin Add your answer to C₁ R₁ R₂ Given: VDD = 1.8 V, R1 = 80 kn, R2 = 100 kn, RD = 2 k2, RS = 1 KQ. W/L = 10, VTO = 0.65 V, KP = 300 μA/V², LAMBDA = 0 V-1, VSB = 0 V. Determine the operating drain current of the circuit. ID =____ MA VDD=1.8 V RD M₁ o Vout Rs 25 Points :
