Bonus Problems (Feel free to skip) Refer to the following circuit. (a) If the value of Rc is tripled, find lê, Ic, and I

Post by answerhappygod »

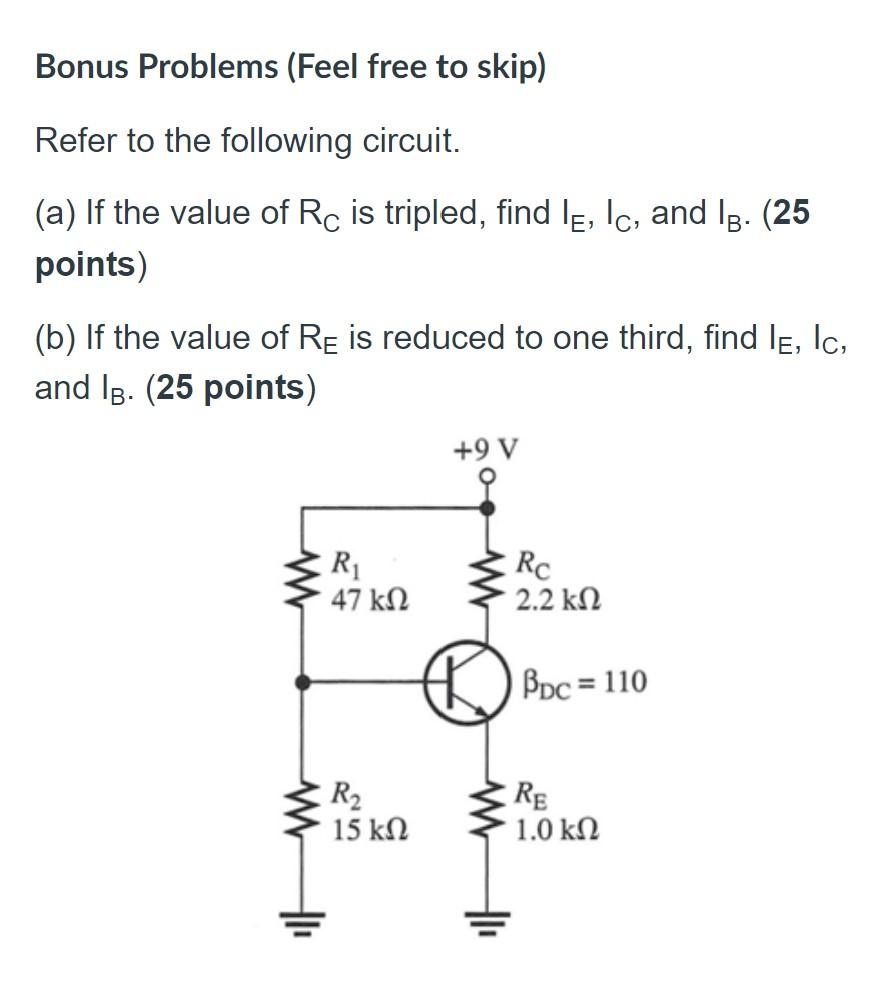

Bonus Problems Feel Free To Skip Refer To The Following Circuit A If The Value Of Rc Is Tripled Find Le Ic And I 1
Bonus Problems Feel Free To Skip Refer To The Following Circuit A If The Value Of Rc Is Tripled Find Le Ic And I 1 (52.92 KiB) Viewed 36 times
Bonus Problems (Feel free to skip) Refer to the following circuit. (a) If the value of Rc is tripled, find lê, Ic, and Iâ. (25 points) (b) If the value of RE is reduced to one third, find lE, IC, and IB. (25 points) ww WW R₁ 47 ΚΩ R₂ 15 ΚΩ +9 V Rc • 2.2 ΚΩ BDC = 110 RE 1.0 ΚΩ
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
