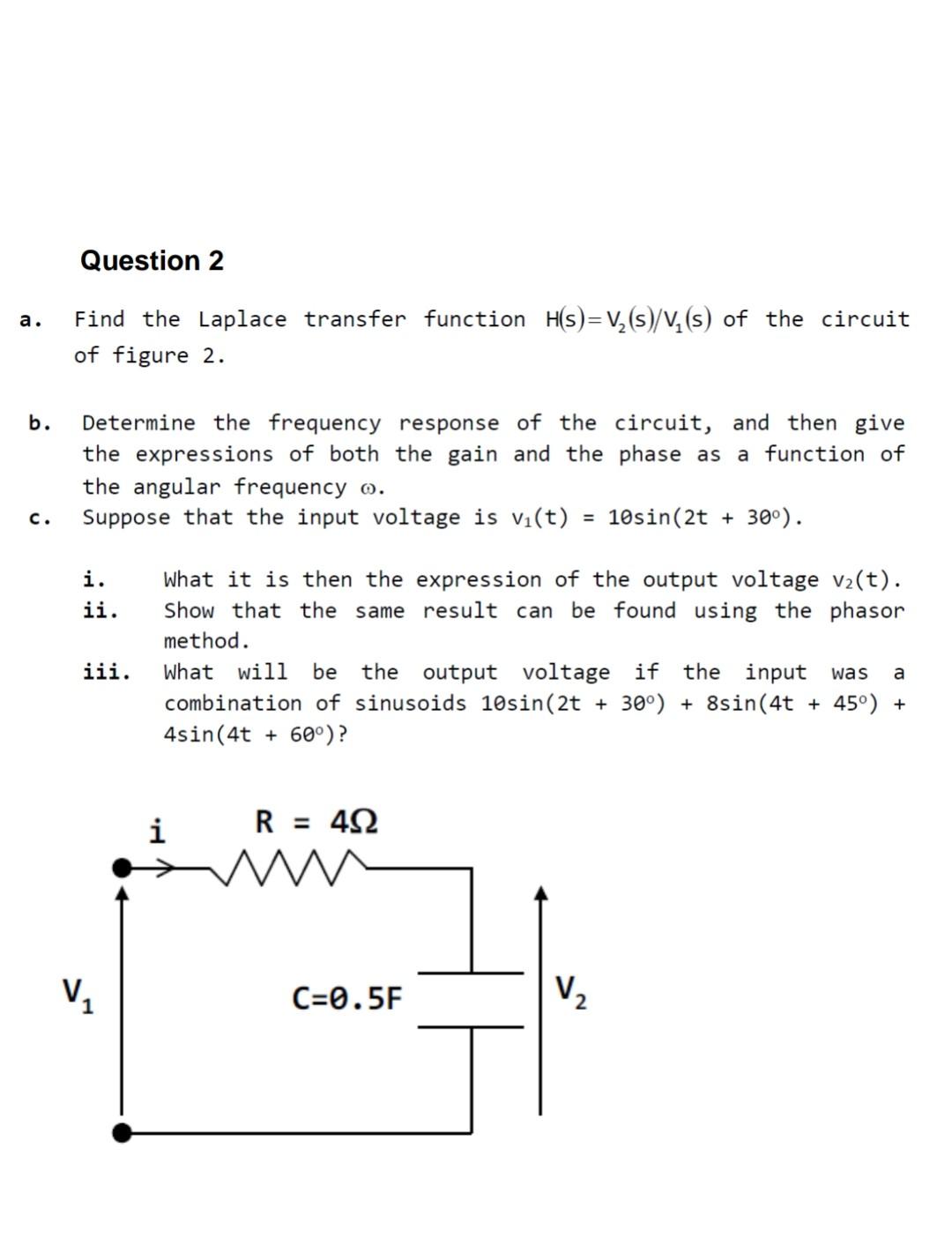

a. b. C. Question 2 Find the Laplace transfer function H(s)= V₂ (s)/V₁(s) of the circuit of figure 2. Determine the frequency response of the circuit, and then give the expressions of both the gain and the phase as a function of the angular frequency o. Suppose that the input voltage is v₁(t) = 10sin(2t + 30°). i. ii. iii. What it is then the expression of the output voltage v₂(t). Show that the same result can be found using the phasor method. What will be the output voltage if the input was a combination of sinusoids 10sin(2t +30°) + 8sin(4t + 45°) + 4sin (4t+ 60°)? R = 492 C=0.5F V₂
