Mock paper 1 1. Consider the RLC circuit. Determine the total impedance for an input v1(t) in the variables. Determine t

[answerhappygod]

Mock Paper 1 1 Consider The Rlc Circuit Determine The Total Impedance For An Input V1 T In The Variables Determine T 1 (34.72 KiB) Viewed 27 times

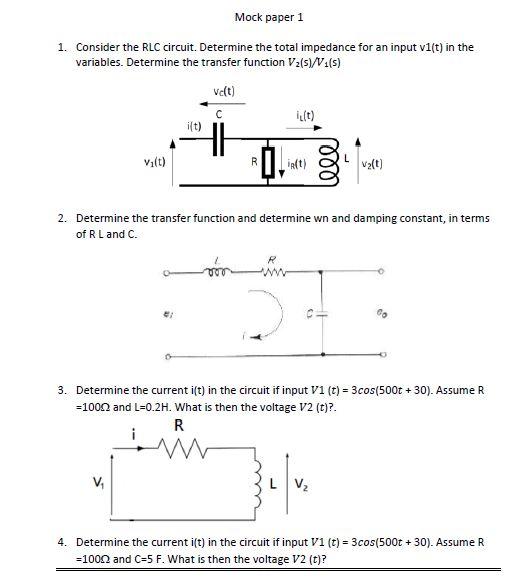

Mock paper 1 1. Consider the RLC circuit. Determine the total impedance for an input v1(t) in the variables. Determine the transfer function V₂(s)/V₁(s) vc(t) V₁(t) V₁ i(t) #1 R il(t) 2. Determine the transfer function and determine wn and damping constant, in terms of R L and C. in(t) L v₂(t) 3. Determine the current i(t) in the circuit if input V1 (t) = 3 cos (500t +30). Assume R =10002 and L=0.2H. What is then the voltage V2 (t)?. R 4. Determine the current i(t) in the circuit if input V1 (t) = 3 cos(500t +30). Assume R =10002 and C-5 F. What is then the voltage V2 (t)?
