QUESTION 1 [14] Calculate the following oscilloscope parameters as pertains to figure 1. 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1 1

[answerhappygod]

Question 1 14 Calculate The Following Oscilloscope Parameters As Pertains To Figure 1 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 1 1 (36 KiB) Viewed 58 times

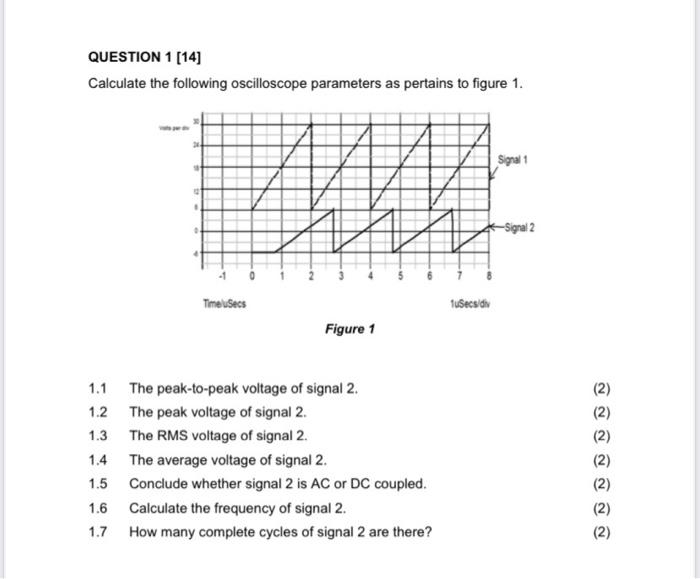

QUESTION 1 [14] Calculate the following oscilloscope parameters as pertains to figure 1. 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1 121 1. 0. -1 TimeluSecs Figure 1 The peak-to-peak voltage of signal 2. The peak voltage of signal 2. The RMS voltage of signal 2. The average voltage of signal 2. Conclude whether signal 2 is AC or DC coupled. Calculate the frequency of signal 2. How many complete cycles of signal 2 are there? 1uSecs/div Signal 1 -Signal 2 (2) (2) (2) (2) (2) (2)
