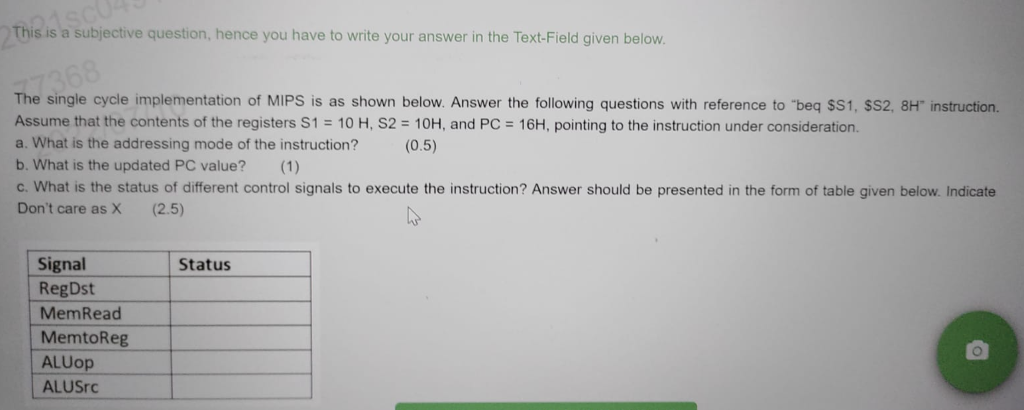

ASCU4 This is a subjective question, hence you have to write your answer in the Text-Field given below. 77368 The single cycle implementation of MIPS is as shown below. Answer the following questions with reference to "beq $S1, $S2, 8H" instruction. Assume that the contents of the registers S1 = 10 H, S2 = 10H, and PC = 16H, pointing to the instruction under consideration. (0.5) a. What is the addressing mode of the instruction? b. What is the updated PC value? (1) c. What is the status of different control signals to execute the instruction? Answer should be presented in the form of table given below. Indicate Don't care as X (2.5) Signal RegDst MemRead MemtoReg ALUop ALUSrc Status
