- Please Solve Number 3 With State Equation Method 1 (95.33 KiB) Viewed 36 times
please solve number 3 with state equation method
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
please solve number 3 with state equation method
please solve number 3 with state equation method

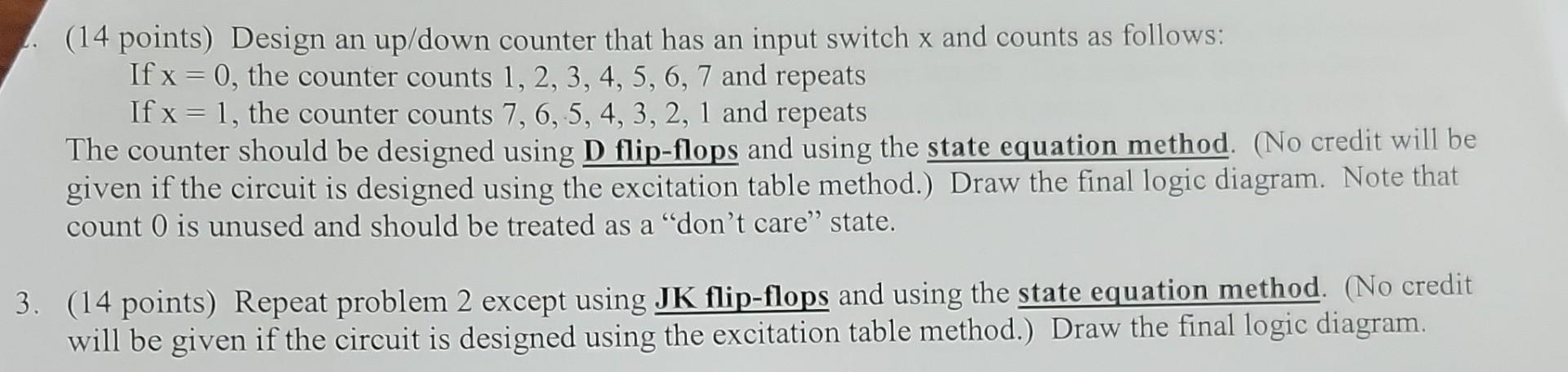

(14 points) Design an up/down counter that has an input switch x and counts as follows: If x = 0, the counter counts 1, 2, 3, 4, 5, 6, 7 and repeats If x = 1, the counter counts 7, 6, 5, 4, 3, 2, 1 and repeats The counter should be designed using D flip-flops and using the state equation method. (No credit will be given if the circuit is designed using the excitation table method.) Draw the final logic diagram. Note that count 0 is unused and should be treated as a "don't care" state. 3. (14 points) Repeat problem 2 except using JK flip-flops and using the state equation method. (No credit will be given if the circuit is designed using the excitation table method.) Draw the final logic diagram.
(14 points) Design an up/down counter that has an input switch x and counts as follows: If x = 0, the counter counts 1, 2, 3, 4, 5, 6, 7 and repeats If x = 1, the counter counts 7, 6, 5, 4, 3, 2, 1 and repeats The counter should be designed using D flip-flops and using the state equation method. (No credit will be given if the circuit is designed using the excitation table method.) Draw the final logic diagram. Note that count 0 is unused and should be treated as a "don't care" state. 3. (14 points) Repeat problem 2 except using JK flip-flops and using the state equation method. (No credit will be given if the circuit is designed using the excitation table method.) Draw the final logic diagram.
