Mathematical Modelling: First Order System Identification 4.- Considering an input step from 25 to 15 [%], the following

Post by answerhappygod »

Mathematical Modelling First Order System Identification 4 Considering An Input Step From 25 To 15 The Following 1
Mathematical Modelling First Order System Identification 4 Considering An Input Step From 25 To 15 The Following 1 (63.7 KiB) Viewed 49 times

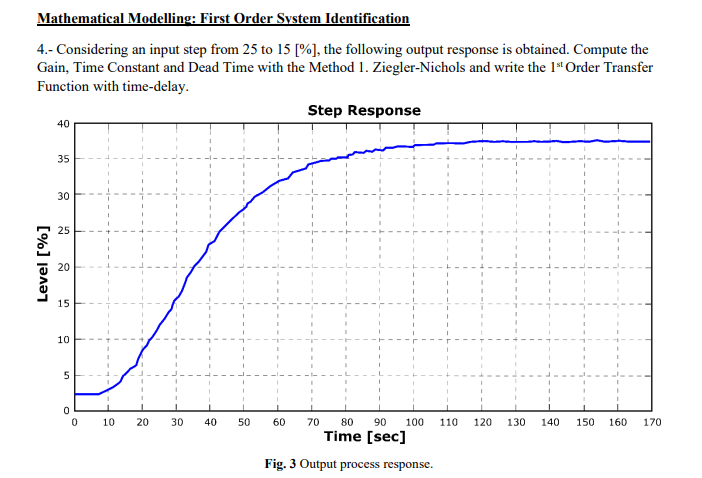

Mathematical Modelling: First Order System Identification 4.- Considering an input step from 25 to 15 [%], the following output response is obtained. Compute the Gain, Time Constant and Dead Time with the Method 1. Ziegler-Nichols and write the 1st Order Transfer Function with time-delay. Level [%] 40 35 30 25 20 15 10 5 0 0 10 1 20 30 40 50 Step Response 60 70 80 90 100 Time [sec] Fig. 3 Output process response. 110 120 130 140 150 160 170
