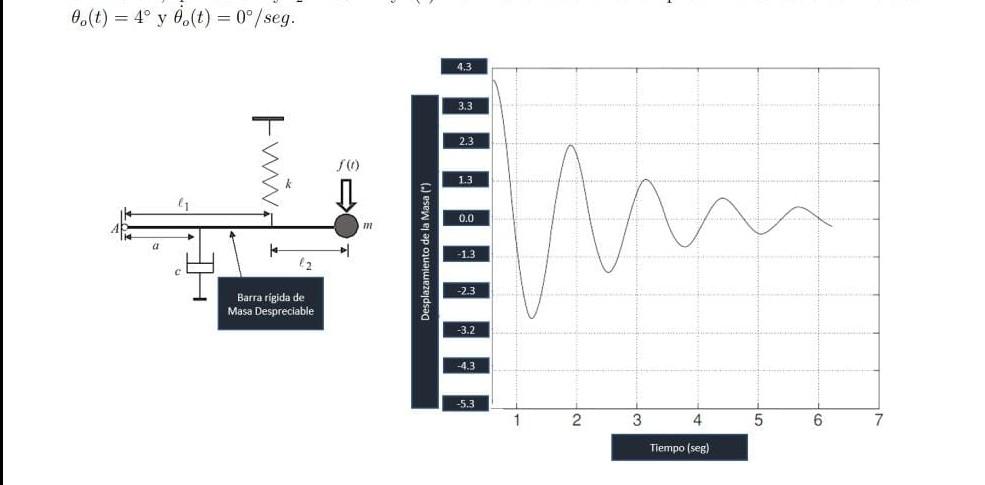

Consider the system and its response shown in Figure 3 wherea = 25 cm, l1 = 50 cm and l2 = 30 cm and f(t)= 0 N. If the initial conditions are applied to the system
Consider The System And Its Response Shown In Figure 3 Where A 25 Cm L1 50 Cm And L2 30 Cm And F T 0 N If The 1 (35.04 KiB) Viewed 63 times
A) Block diagram of the system.B) If the system has a constant input f(t) of 5N and 10N, obtain the response θ(t) of the systemusing the inverse laplace transform and plot both responses using scilabXCOS.C) Find the poles, zeros and the characteristic equation of the system and determine the stability of thesystem
