(c) For the following Boolean function; F=(AB)' + (ABC)' + BC' Apply De-Morgan theorem on the function to obtain Boolean

Post by answerhappygod »

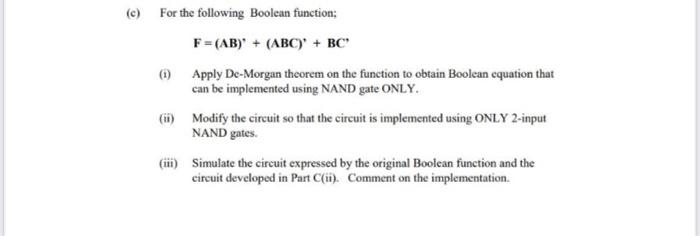

C For The Following Boolean Function F Ab Abc Bc Apply De Morgan Theorem On The Function To Obtain Boolean 1
C For The Following Boolean Function F Ab Abc Bc Apply De Morgan Theorem On The Function To Obtain Boolean 1 (14 KiB) Viewed 45 times
(c) For the following Boolean function; F=(AB)' + (ABC)' + BC' Apply De-Morgan theorem on the function to obtain Boolean equation that can be implemented using NAND gate ONLY. (1) (ii) Modify the circuit so that the circuit is implemented using ONLY 2-input NAND gates. (iii) Simulate the circuit expressed by the original Boolean function and the circuit developed in Part C(ii). Comment on the implementation.
