The current through resistor 𝑅1 is 2.0 A. 𝑅1=4Ω,𝑅2=10Ω and 𝑅3=40Ω.

Post by answerhappygod »

The current through resistor 𝑅1 is 2.0 A. 𝑅1=4Ω,𝑅2=10Ω and𝑅3=40Ω.
1
1 (26 KiB) Viewed 31 times

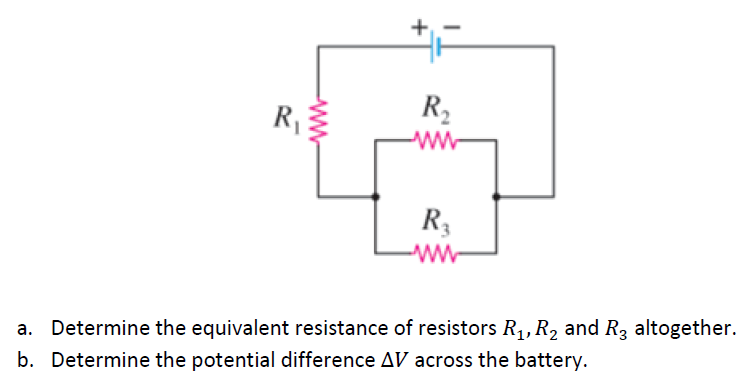

R₁ www R₂ www R₂ www a. Determine the equivalent resistance of resistors R₁, R₂ and R3 altogether. b. Determine the potential difference AV across the battery.
