You are given three capacitors: C₁ = 3.0 μF, C₂ = 7.0 μF, and C3 = 4.0 μF. What is the smallest and largest possible equ

[answerhappygod]

1 (20.07 KiB) Viewed 50 times

2 (25.95 KiB) Viewed 50 times

3 (25.19 KiB) Viewed 50 times

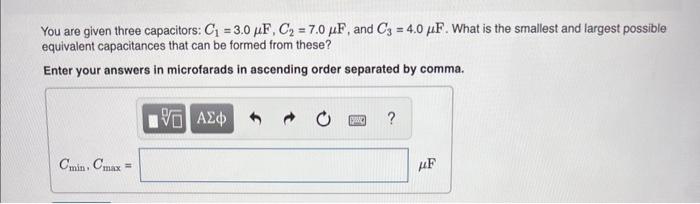

You are given three capacitors: C₁ = 3.0 μF, C₂ = 7.0 μF, and C3 = 4.0 μF. What is the smallest and largest possible equivalent capacitances that can be formed from these? Enter your answers in microfarads in ascending order separated by comma. Cmin + Cmax = 5 ΑΣΦ PINO ? μF

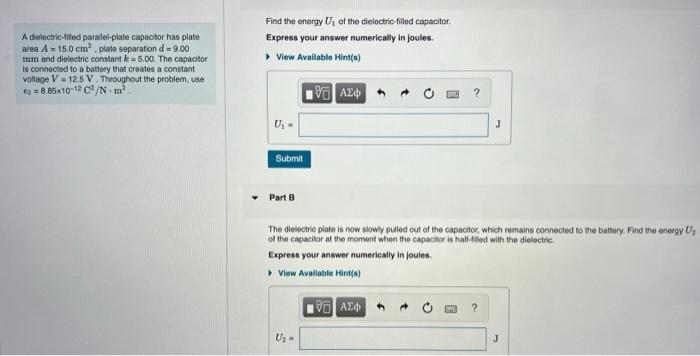

A dielectric-filled parallel-plate capacitor has plate area A=15.0 cm² plate separation d = 9.00 mm and dielectric constant &c=5.00. The capacitor is connected to a battery that creates a constant voltage V 12.5 V. Throughout the problem, use to=8.85x10-12 C²/N·m² Find the energy U₁ of the dielectric-filled capacitor. Express your answer numerically in joules. ▸ View Available Hint(s) 1951 ΑΣΦ U₁= Submit Part B ▸ View Available Hint(s) > The dielectric plate is now slowly pulled out of the capacitor, which remains connected to the battery. Find the energy U₂ of the capacitor at the moment when the capacitor is half-filled with the dielectric Express your answer numerically in joules. U₂= ? VAZ J ?

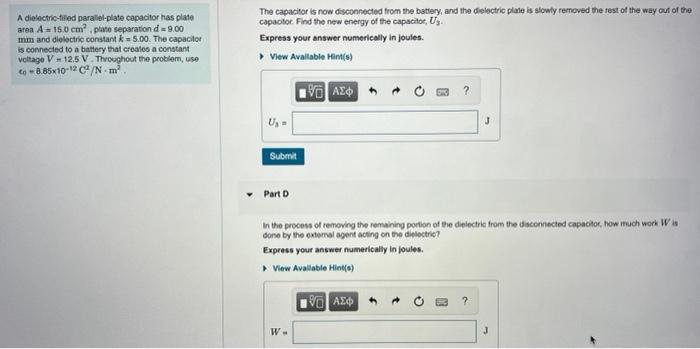

A dielectric-filled parallel-plate capacitor has plate area A=15.0 cm², plate separation d =9.00 mm and dielectric constant k = 5.00. The capacitor is connected to a battery that creates a constant voltage V= 12.5 V Throughout the problem, use to-8.85x10-12 C/N m². The capacitor is now disconnected from the battery, and the dielectric plate is slowly removed the rest of the way out of the capacitor. Find the new energy of the capacitor, Us Express your answer numerically in joules. > View Available Hint(s) 15. ΑΣΦΑ U₂ = Submit Part D W- ? In the process of removing the remaining portion of the dielectric from the disconnected capacitor, how much work Wis done by the external agent acting on the dielectric? Express your answer numerically in joules. View Available Hint(s) 1961 ΑΣΦ J ?
