1) 2)

Post by answerhappygod »

1)
1 2 1
1 2 1 (47.9 KiB) Viewed 34 times
2)
1 2 2
1 2 2 (35.3 KiB) Viewed 34 times

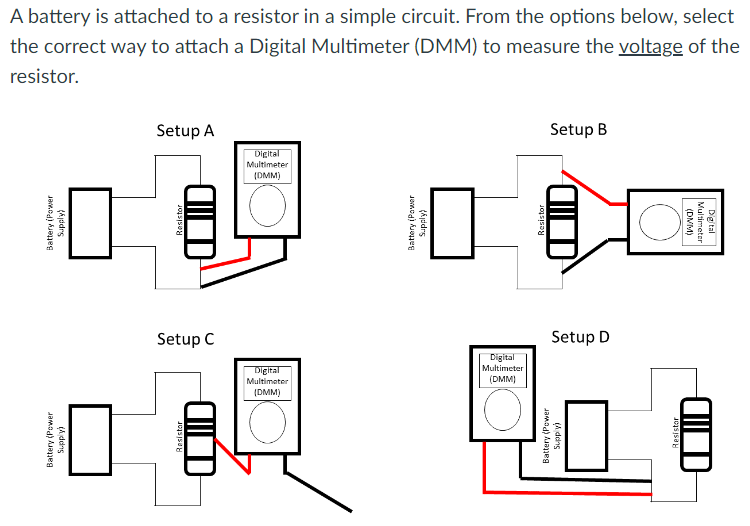

A battery is attached to a resistor in a simple circuit. From the options below, select the correct way to attach a Digital Multimeter (DMM) to measure the voltage of the resistor. Battery (Power Supply) Battery (Power Supply) Setup A Resistor Setup C Resistor Digital Multimeter (DMM) Digital Multimeter (DMM) Battery (Power Supply) Digital Multimeter (DMM) Resistor Setup B Setup D Battery (Power Supp y Resistor (DMM) Multimeter Digital

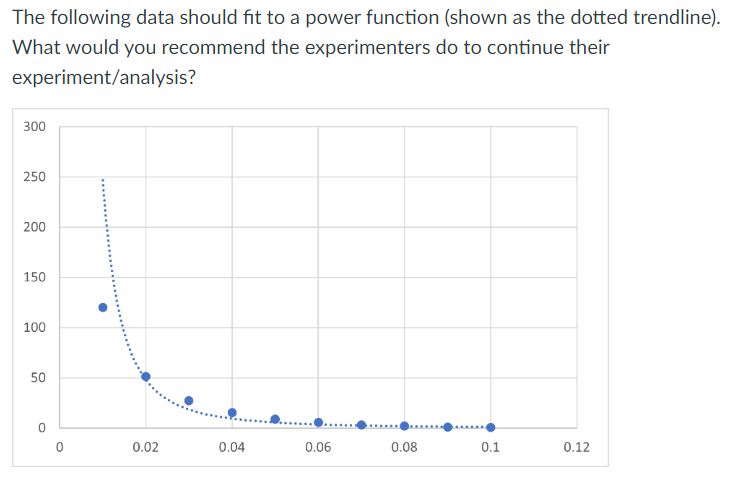

The following data should fit to a power function (shown as the dotted trendline). What would you recommend the experimenters do to continue their experiment/analysis? 300 250 200 150 100 50 0 0.02 0.04 0.06 0.08 0.1 0.12
