- Question 10 A Rubber Ball Has Been Dropped And Is Bouncing Off The Floor 10 1 Draw A Motion Diagram Of The Ball During 1 (32.4 KiB) Viewed 37 times

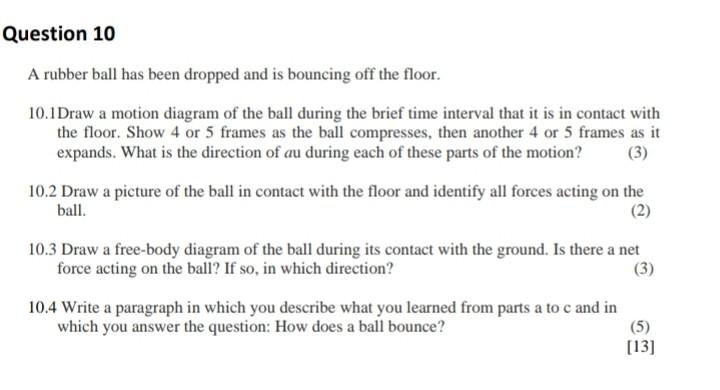

Question 10 A rubber ball has been dropped and is bouncing off the floor. 10.1 Draw a motion diagram of the ball during the brief time interval that it is in contact with the floor. Show 4 or 5 frames as the ball compresses, then another 4 or 5 frames as it expands. What is the direction of au during each of these parts of the motion? (3) 10.2 Draw a picture of the ball in contact with the floor and identify all forces acting on the ball. (2) 10.3 Draw a free-body diagram of the ball during its contact with the ground. Is there a net force acting on the ball? If so, in which direction? (3) 10.4 Write a paragraph in which you describe what you learned from parts a to c and in which you answer the question: How does a ball bounce? (5) [13]
