The circuit in the figure below contains a 9.00 V battery and four capacitors. The two capacitors on the left and right

Post by answerhappygod »

The Circuit In The Figure Below Contains A 9 00 V Battery And Four Capacitors The Two Capacitors On The Left And Right 1
The Circuit In The Figure Below Contains A 9 00 V Battery And Four Capacitors The Two Capacitors On The Left And Right 1 (20.78 KiB) Viewed 66 times

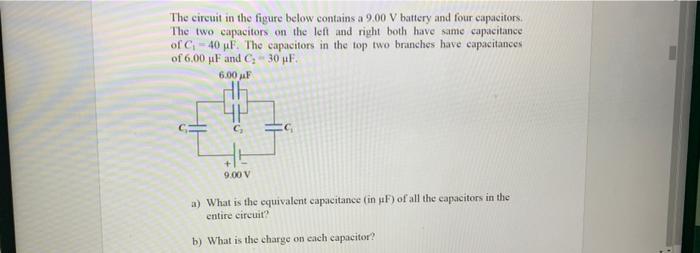

The circuit in the figure below contains a 9.00 V battery and four capacitors. The two capacitors on the left and right both have same capacitance of C₁ 40 uF. The capacitors in the top two branches have capacitances of 6.00 µF and C₂-30 µF. 6.00 μF 9.00 V a) What is the equivalent capacitance (in uF) of all the capacitors in the entire circuit? b) What is the charge on each capacitor?
