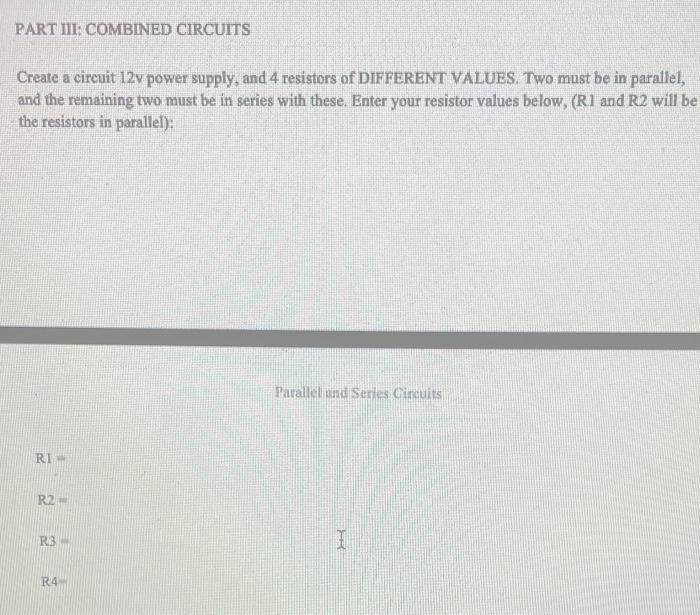

PART III: COMBINED CIRCUITS Create a circuit 12v power supply, and 4 resistors of DIFFERENT VALUES. Two must be in parallel, and the remaining two must be in series with these. Enter your resistor values below, (R1 and R2 will be the resistors in parallel): RI- R2- R3- R4 Parallel and Series Circuits I

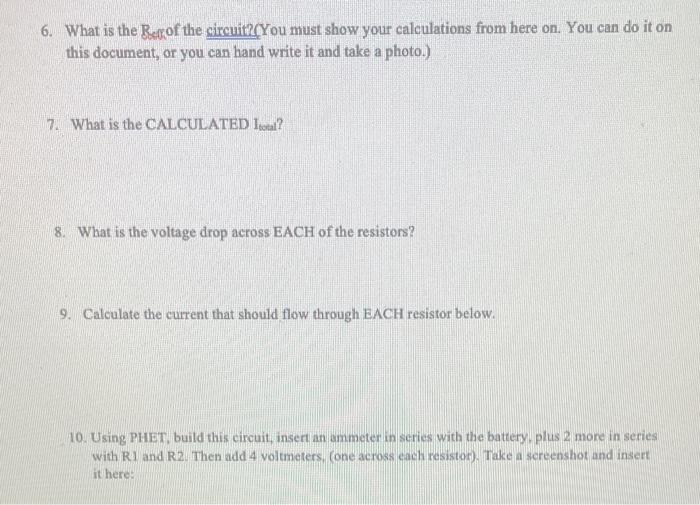

6. What is the Bet of the circuit?(You must show your calculations from here on. You can do it on this document, or you can hand write it and take a photo.) 7. What is the CALCULATED Ital? 8. What is the voltage drop across EACH of the resistors? 9. Calculate the current that should flow through EACH resistor below. 10. Using PHET, build this circuit, insert an ammeter in series with the battery, plus 2 more in series with R1 and R2. Then add 4 voltmeters, (one across each resistor). Take a screenshot and insert it here:
