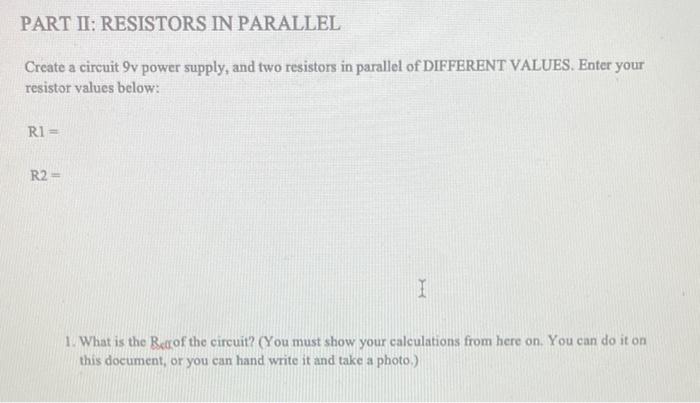

PART II: RESISTORS IN PARALLEL Create a circuit 9v power supply, and two resistors in parallel of DIFFERENT VALUES. Enter your resistor values below: R1= R2= I 1. What is the Bet of the circuit? (You must show your calculations from here on. You can do it on this document, or you can hand write it and take a photo.)

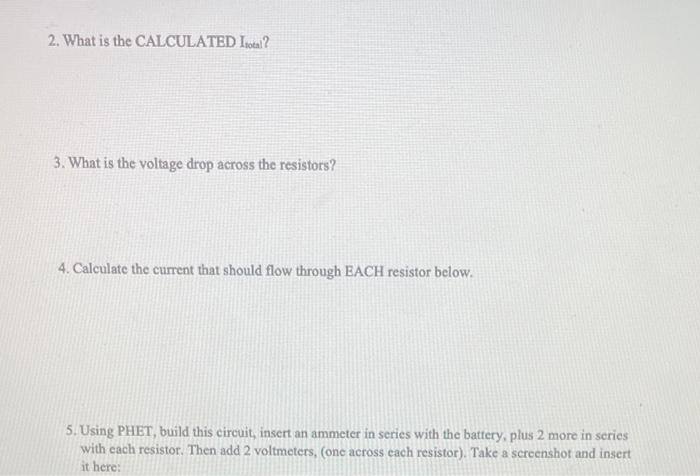

2. What is the CALCULATED Isotal? 3. What is the voltage drop across the resistors? 4. Calculate the current that should flow through EACH resistor below. 5. Using PHET, build this circuit, insert an ammeter in series with the battery, plus 2 more in series with each resistor. Then add 2 voltmeters, (one across each resistor). Take a screenshot and insert it here:
