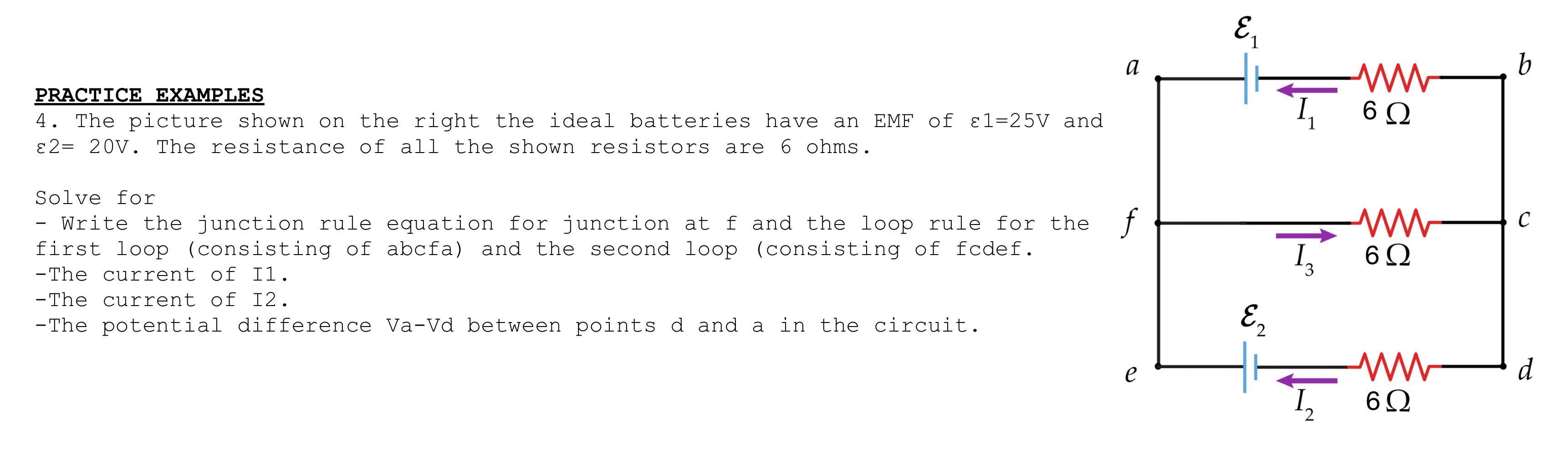

PRACTICE EXAMPLES 4. The picture shown on the right the ideal batteries have an EMF of c1=25V and ε 2= 20V. The resistance of all the shown resistors are 6 ohms. a Solve for - Write the junction rule equation for junction at f and the loop rule for the f first loop (consisting of abcfa) and the second loop (consisting of fcdef. -The current of Il. -The current of 12. -The potential difference Va-Vd between points d and a in the circuit. e &₁ દ, ww 6Ω 2 www T₂692 6Ω 3 ww 6Ω b C d
