The figure below shows three small, charged beads, all lying along the horizontal axis. Bead A, at left, has a 5.20 nC c

[answerhappygod]

The Figure Below Shows Three Small Charged Beads All Lying Along The Horizontal Axis Bead A At Left Has A 5 20 Nc C 1 (22.38 KiB) Viewed 48 times

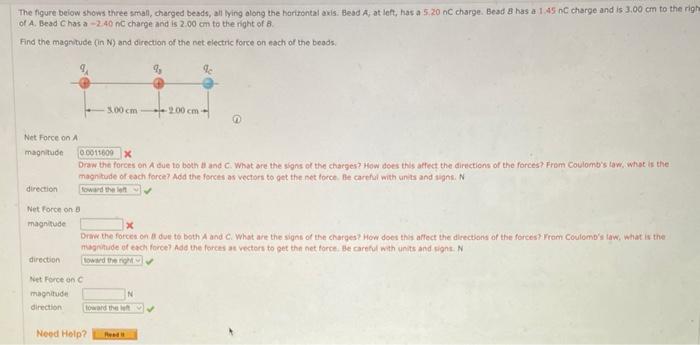

The figure below shows three small, charged beads, all lying along the horizontal axis. Bead A, at left, has a 5.20 nC charge. Bead 8 has a 1.45 nC charge and is 3.00 cm to the righe of A. Bead C has a -2.40 nC charge and is 2.00 cm to the right of 8. Find the magnitude (in N) and direction of the net electric force on each of the beads. Net Force on A magnitude direction Net Force on B magnitude direction 3.00 cm Net Force on C magnitude direction 0.0011609 X Draw the forces on A due to both B and C. What are the signs of the charges? How does this affect the directions of the forces? From Coulomb's law, what is the magnitude of each force? Add the forces as vectors to get the net force. Be careful with units and signs. N foward the left 9 toward the left q Draw the forces on due to both A and C. What are the signs of the charges? How does this affect the directions of the forces? From Coulomb's law, what is the magnitude of each force? Add the forces as vectors to get the net force. Be careful with units and signs: N toward the right Need Help? Read 200 cm-
