The RC circuit of (Figure 1) has R = 8.0 kQ and C = 2.0 uF. The capacitor is at voltage VO at t=0, when the switch is cl

[answerhappygod]

The Rc Circuit Of Figure 1 Has R 8 0 Kq And C 2 0 Uf The Capacitor Is At Voltage Vo At T 0 When The Switch Is Cl 1 (62.9 KiB) Viewed 48 times

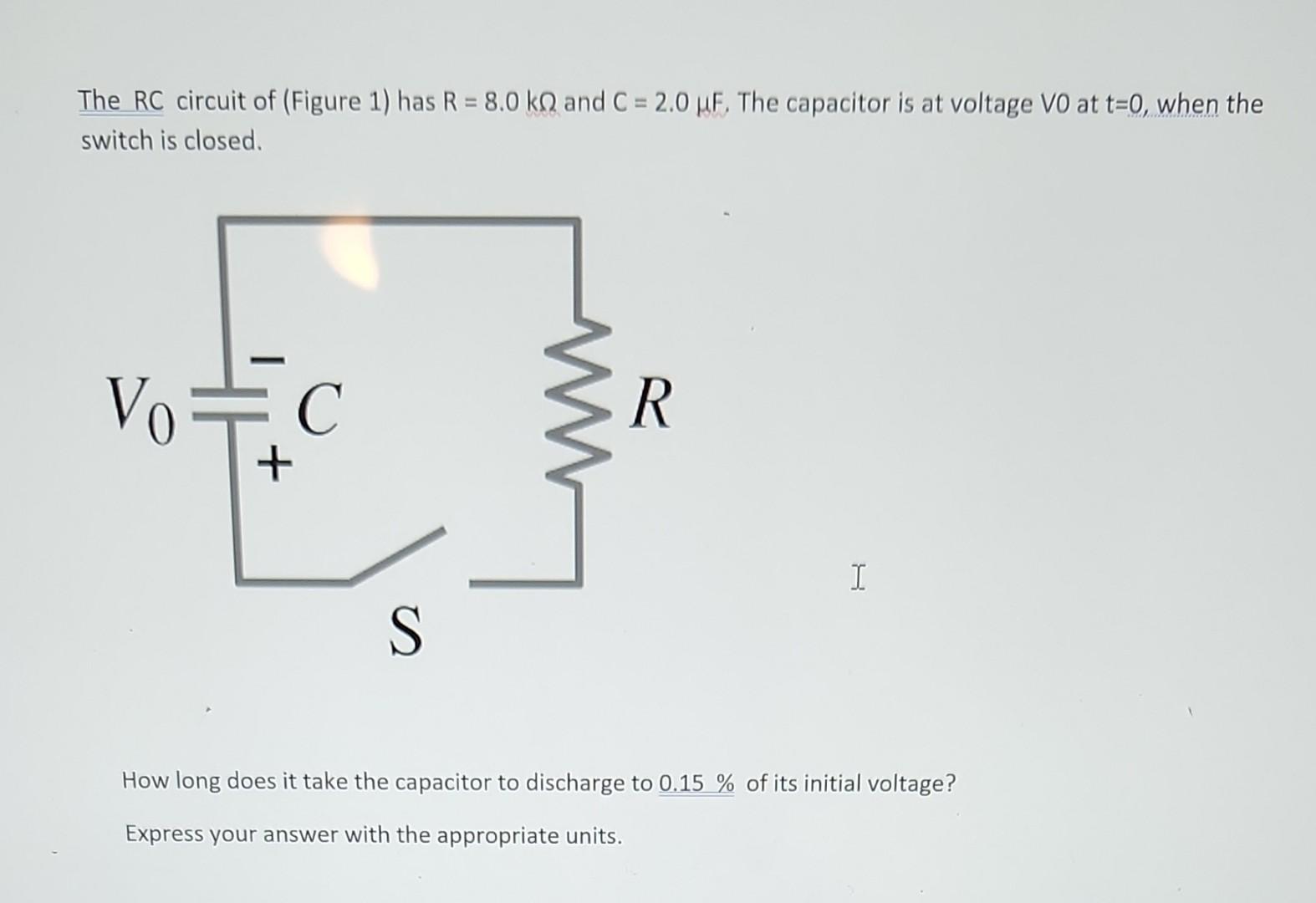

The RC circuit of (Figure 1) has R = 8.0 kQ and C = 2.0 uF. The capacitor is at voltage VO at t=0, when the switch is closed. Vo + с S Lum R I How long does it take the capacitor to discharge to 0.15 % of its initial voltage? Express your answer with the appropriate units.
