Consider the circuit shown in (Figure 1). The batteries have emfs of E1-9.0V and E2-12.0V and the resistors have values
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Consider the circuit shown in (Figure 1). The batteries have emfs of E1-9.0V and E2-12.0V and the resistors have values

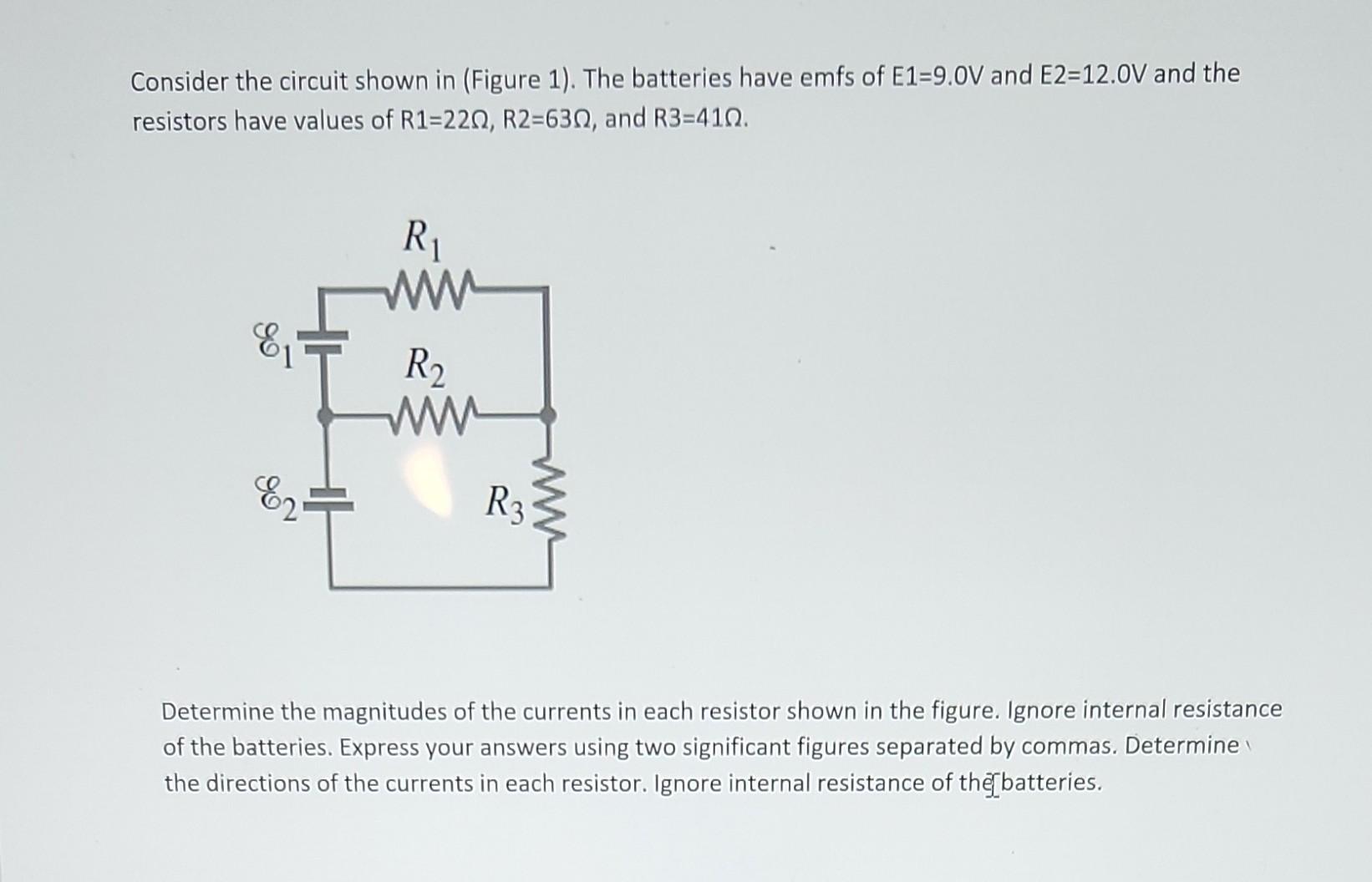

Consider the circuit shown in (Figure 1). The batteries have emfs of E1-9.0V and E2-12.0V and the resistors have values of R1=220, R2=630, and R3=410. E2 R₁ R₂ www R3 www Determine the magnitudes of the currents in each resistor shown in the figure. Ignore internal resistance of the batteries. Express your answers using two significant figures separated by commas. Determine the directions of the currents in each resistor. Ignore internal resistance of the batteries.
