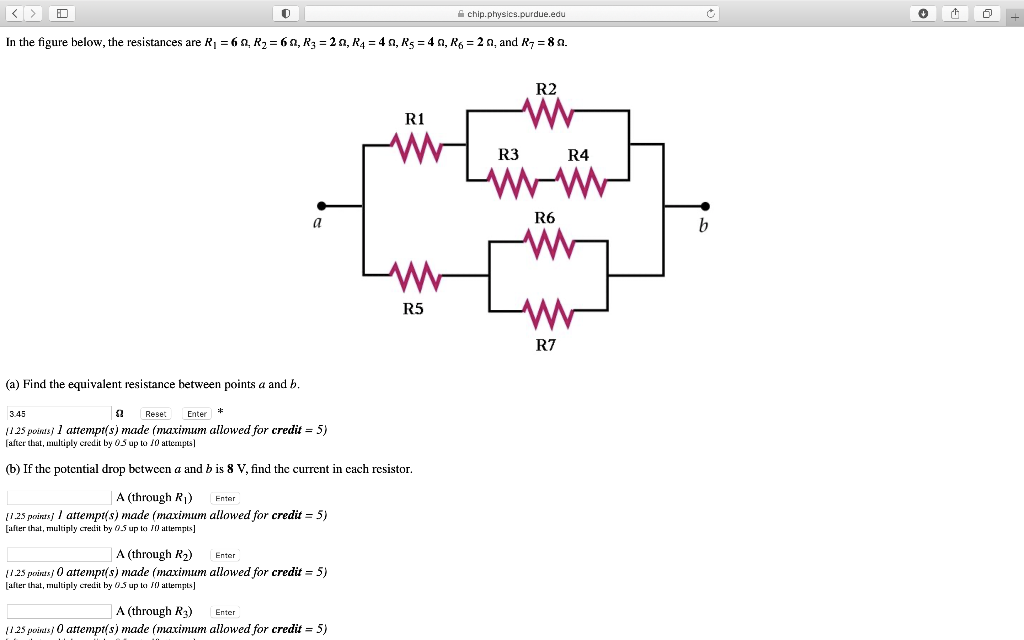

- D 0 In The Figure Below The Resistances Are R 60 R 6a R 2 R 40 R 4 R6 2n And R7 8 A A Throu 1 (105.6 KiB) Viewed 40 times
- D 0 In The Figure Below The Resistances Are R 60 R 6a R 2 R 40 R 4 R6 2n And R7 8 A A Throu 2 (89.32 KiB) Viewed 40 times

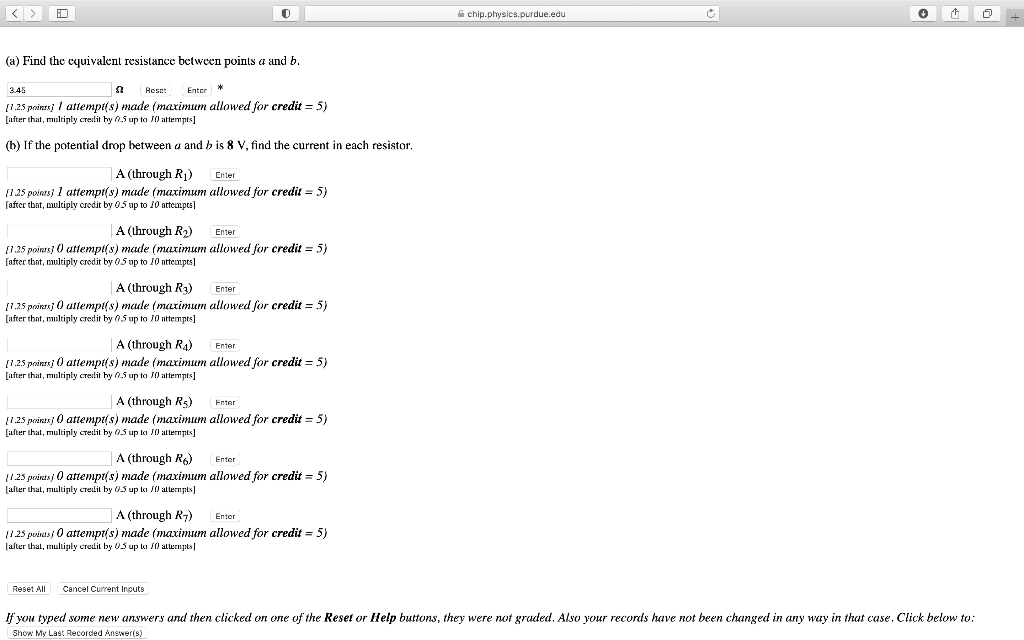

10 (a) Find the equivalent resistance between points a and b. Reset Enter 3.45 52 [1.25 points] I attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 70) attempts] (b) If the potential drop between a and b is 8 V, find the current in each resistor. * A (through R₁) Enter [1.25 points] 1 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts] A (through R₂) Enter [1.25 points] 0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts] A (through R3) Enter [1.25 points] 0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts] A (through R4) Enter [1.25 points] 0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 70 attempts] A (through R5) Enter [1.25 points] 0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 70) attempts] A (through R6) Enter [1.25 points)0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 70) attempts] A (through R7) Enter (125 poinas) 0 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts] Reset All Cancel Current Inputs chip.physics.purdue.edu ✪ ✩ If you typed some new answers and then clicked on one of the Reset or Help buttons, they were not graded. Also your records have not been changed in any way in that case. Click below to: Show My Last Recorded Answer(s)
