Need help with questions 10 ~ 12 thank you so much! Here is the simulator link "https://phet.colorado.edu/sims/html/char

[answerhappygod]

Need help with questions 10 ~ 12 thank you so much! Here is thesimulator link"https://phet.colorado.edu/sims/html/cha ... ds_en.html"

Need Help With Questions 10 12 Thank You So Much Here Is The Simulator Link Https Phet Colorado Edu Sims Html Char 1 (504.08 KiB) Viewed 34 times

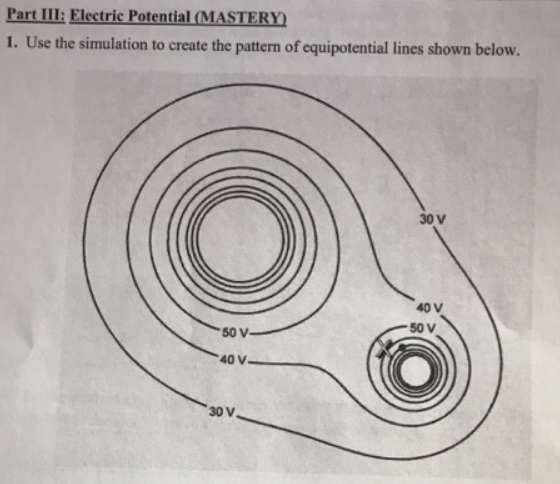

Part III: Electric Potential (MASTERY) 1. Use the simulation to create the pattern of equipotential lines shown below. 50 V- 40 V- 30 V. 30 V 40 V -50 V
Question 10 Provide a screenshot of your configuration showing the electric field lines and equipotential lines. Edit View Insert Format Tools Table 12pt Paragraph р Question 11 B I UAV T² v How are the electric field lines oriented relative to the equipotential lines? O The electric field lines are always parallel to the equipotential lines. Ⓒ The electric field lines are always perpendicular to the equipotential lines. O The orientation of the electric field lines varies relative to that of the equipotential lines. D₁₂ E G ⠀ 0 words 1 pts ⠀⠀ 1 pts
Question 12 Predict the path that a proton would immediately travel in if released from the red dot at location X in the figure. The proton would move towards the smaller charge configuration. The proton would move towards the larger charge configuration. The proton would move away from both configurations. The proton's path cannot be determined with the given information. 1 pts
