Question 18 Three forces of equal magnitude are applied to a 3-m by 2-m rectangle. Forces F₁ and F₂ act at 45° angles to

[answerhappygod]

Question 18 Three Forces Of Equal Magnitude Are Applied To A 3 M By 2 M Rectangle Forces F And F Act At 45 Angles To 1 (31.58 KiB) Viewed 36 times

Question 18 Three Forces Of Equal Magnitude Are Applied To A 3 M By 2 M Rectangle Forces F And F Act At 45 Angles To 2 (30.67 KiB) Viewed 36 times

Question 18 Three Forces Of Equal Magnitude Are Applied To A 3 M By 2 M Rectangle Forces F And F Act At 45 Angles To 3 (32.5 KiB) Viewed 36 times

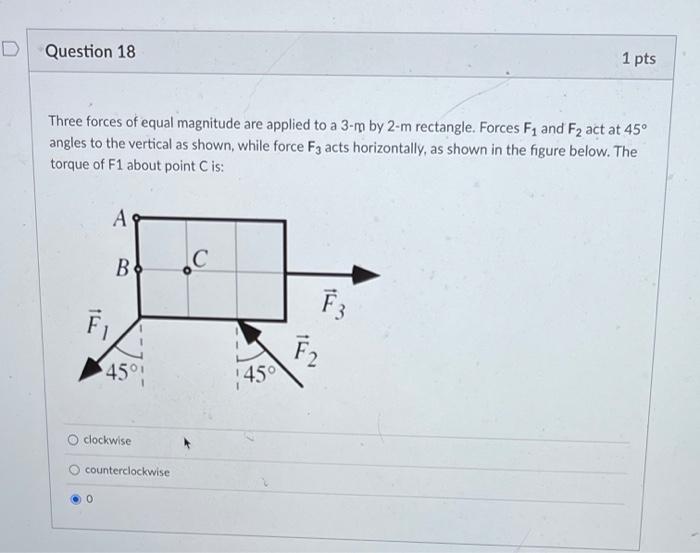

Question 18 Three forces of equal magnitude are applied to a 3-m by 2-m rectangle. Forces F₁ and F₂ act at 45° angles to the vertical as shown, while force F3 acts horizontally, as shown in the figure below. The torque of F1 about point Cis: F₁ A B 0 45°! clockwise counterclockwise C 450 1 pts F₂

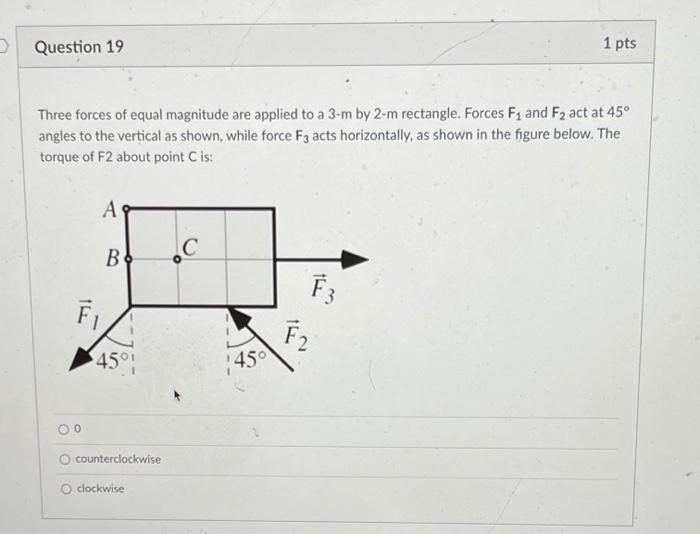

Question 19 Three forces of equal magnitude are applied to a 3-m by 2-m rectangle. Forces F₁ and F₂ act at 45° angles to the vertical as shown, while force F3 acts horizontally, as shown in the figure below. The torque of F2 about point C is: A F₁ B 45°! counterclockwise O clockwise C 45° F3 1 pts F2

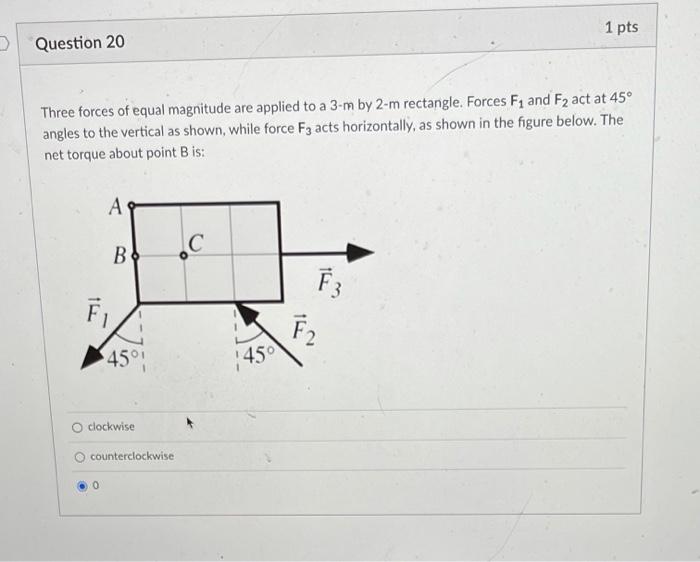

Question 20 Three forces of equal magnitude are applied to a 3-m by 2-m rectangle. Forces F₁ and F₂ act at 45° angles to the vertical as shown, while force F3 acts horizontally, as shown in the figure below. The net torque about point B is: A B F₁ $45°1 O clockwise counterclockwise C 45° F3 1 pts F2
