8) If an Al 6061 rod of diameter = 0.25±0.001 inches is loaded under tension until failure and the failure load recorded
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
8) If an Al 6061 rod of diameter = 0.25±0.001 inches is loaded under tension until failure and the failure load recorded

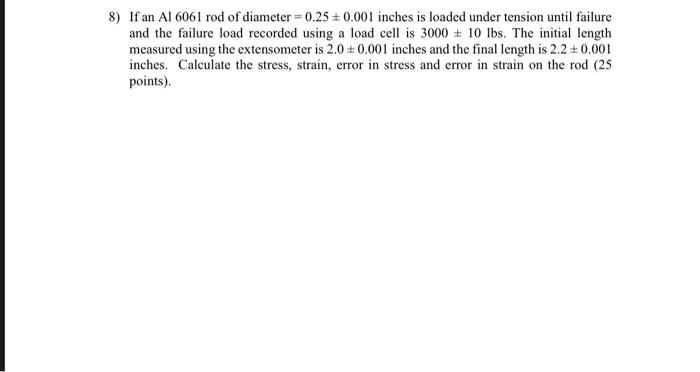

8) If an Al 6061 rod of diameter = 0.25±0.001 inches is loaded under tension until failure and the failure load recorded using a load cell is 3000 10 lbs. The initial length measured using the extensometer is 2.0 ±0.001 inches and the final length is 2.2 +0.001 inches. Calculate the stress, strain, error in stress and error in strain on the rod (25 points).
