A voltmeter is connected across a 3.0 2 resistor in the circuit shown below. The battery is 12V. What is the reading on

Post by answerhappygod »

A Voltmeter Is Connected Across A 3 0 2 Resistor In The Circuit Shown Below The Battery Is 12v What Is The Reading On 1
A Voltmeter Is Connected Across A 3 0 2 Resistor In The Circuit Shown Below The Battery Is 12v What Is The Reading On 1 (33.43 KiB) Viewed 20 times

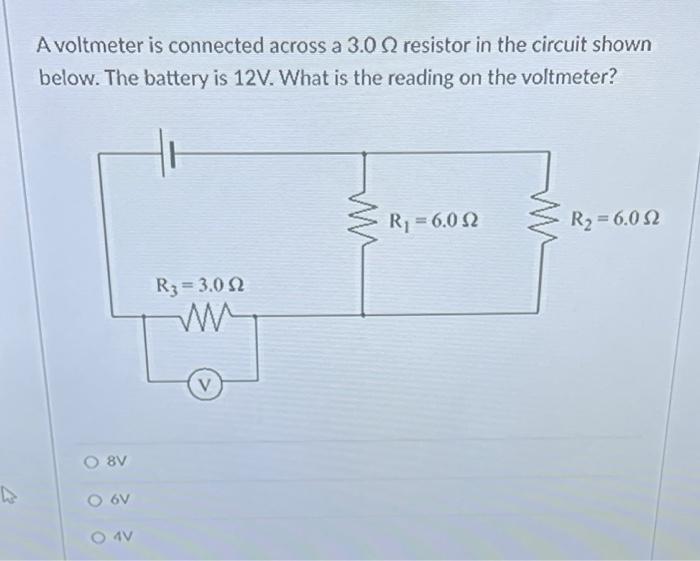

A voltmeter is connected across a 3.0 2 resistor in the circuit shown below. The battery is 12V. What is the reading on the voltmeter? 8V 6V O 4V R₂=3.02 V ww R₁ = 6.0 R₂= 6.052
