Given the FBD of a wooden block that is part of a pulley system as shown below, in what direction does the wooden block

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Given the FBD of a wooden block that is part of a pulley system as shown below, in what direction does the wooden block

Post by answerhappygod »

Given The Fbd Of A Wooden Block That Is Part Of A Pulley System As Shown Below In What Direction Does The Wooden Block 1
Given The Fbd Of A Wooden Block That Is Part Of A Pulley System As Shown Below In What Direction Does The Wooden Block 1 (29.48 KiB) Viewed 27 times

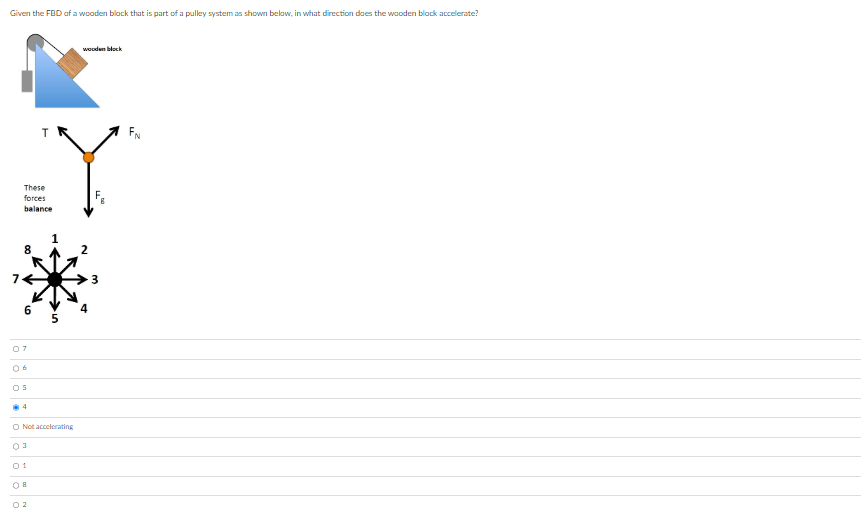

Given the FBD of a wooden block that is part of a pulley system as shown below, in what direction does the wooden block accelerate? These forces balance 07 OS FN "Y" O Not accelerating 03 01 08 02 wooden block 3
