A 4x4 F Hint: (You should find that x is 2.8 m) 6.0 g 0 B One end of a uniform rod with weight length L = 4m, and weight

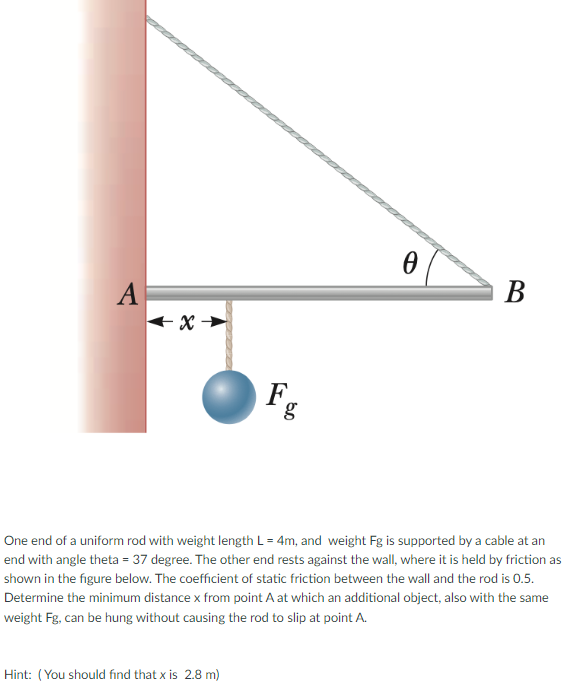

A 4x4 F Hint: (You should find that x is 2.8 m) 6.0 g 0 B One end of a uniform rod with weight length L = 4m, and weight Fg is supported by a cable at an end with angle theta = 37 degree. The other end rests against the wall, where it is held by friction as shown in the figure below. The coefficient of static friction between the wall and the rod is 0.5. Determine the minimum distance x from point A at which an additional object, also with the same weight Fg, can be hung without causing the rod to slip at point A.
