What are the expected readings of the following in the figure below? (R = 6.100, AV = 6.60 V) C 10.0 Ω www www 5.00 Ω ww

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

What are the expected readings of the following in the figure below? (R = 6.100, AV = 6.60 V) C 10.0 Ω www www 5.00 Ω ww

Post by answerhappygod »

1
1 (55.07 KiB) Viewed 46 times

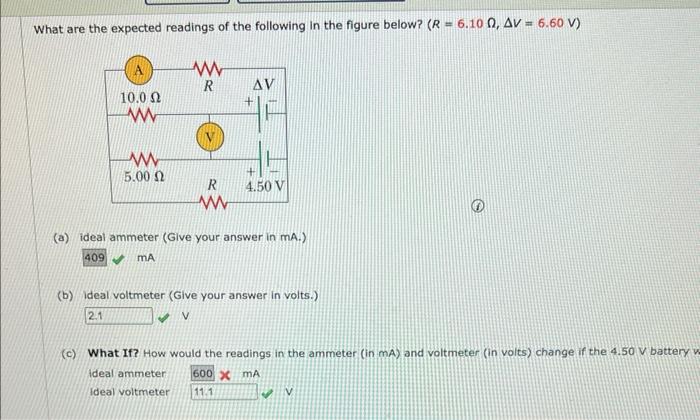

What are the expected readings of the following in the figure below? (R = 6.100, AV = 6.60 V) C 10.0 Ω www www 5.00 Ω www R AV R 4.50 V www ideal ammeter (Give your answer in mA.) 409 mA (b) ideal voltmeter (Give your answer in volts.) 2.1 V Ⓒ (c) What If? How would the readings in the ammeter (in mA) and voltmeter (in volts) change if the 4.50 V battery w ideal ammeter 600 X mA ideal voltmeter 11.1 V
