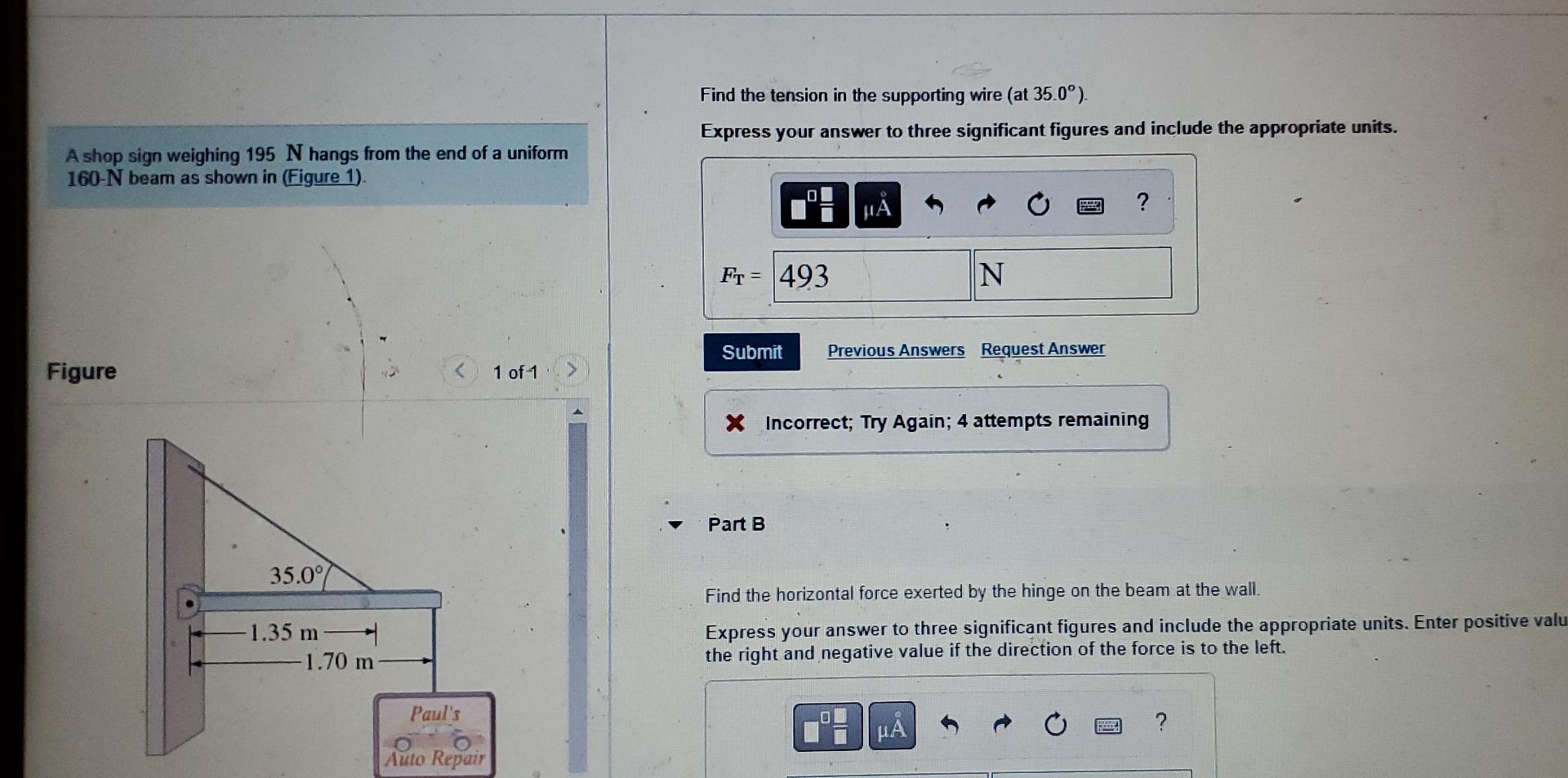

A Shop Sign Weighing 195 N Hangs From The End Of A Uniform 160 N Beam As Shown In Figure 1 Figure 35 0 1 35 M 1 70 1 (197.05 KiB) Viewed 47 times

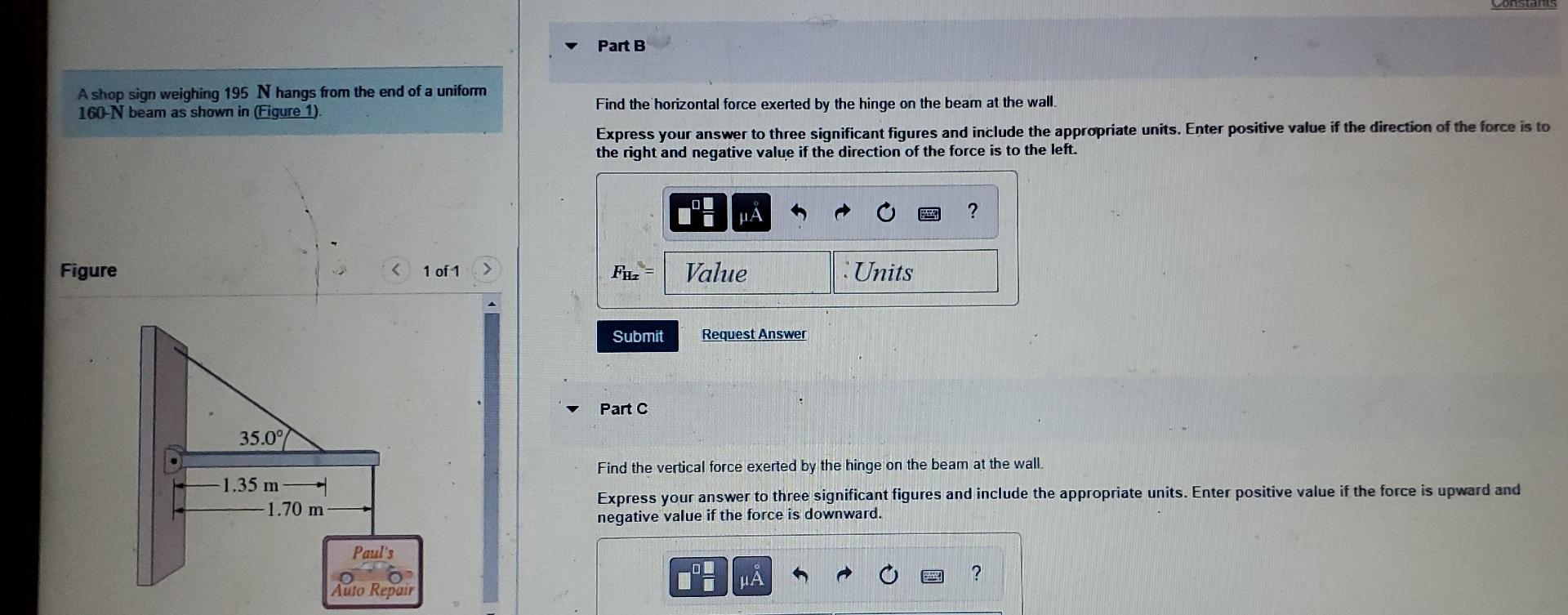

A Shop Sign Weighing 195 N Hangs From The End Of A Uniform 160 N Beam As Shown In Figure 1 Figure 35 0 1 35 M 1 70 2 (163.82 KiB) Viewed 47 times
A shop sign weighing 195 N hangs from the end of a uniform 160-N beam as shown in (Figure 1). Figure 35.0° -1.35 m 1.70 m Paul's Auto Repair 1 of 1 Find the tension in the supporting wire (at 35.0°). Express your answer to three significant figures and include the appropriate units. FT = 493 Submit HÅ Part B N Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining ? μA Find the horizontal force exerted by the hinge on the beam at the wall. Express your answer to three significant figures and include the appropriate units. Enter positive valu the right and negative value if the direction of the force is to the left.
A shop sign weighing 195 N hangs from the end of a uniform 160-N beam as shown in (Figure 1). Figure 35.0⁰ -1.35 m -1.70 m Paul's O Auto Repair 1 of 1 Part B Find the horizontal force exerted by the hinge on the beam at the wall. Express your answer to three significant figures and include the appropriate units. Enter positive value if the direction of the force is to the right and negative value if the direction of the force is to the left. FH₂ = Submit Part C Value Request Answer Units μA peg ? Constants Find the vertical force exerted by the hinge on the beam at the wall. Express your answer to three significant figures and include the appropriate units. Enter positive value if the force is upward and negative value if the force is downward. ?
