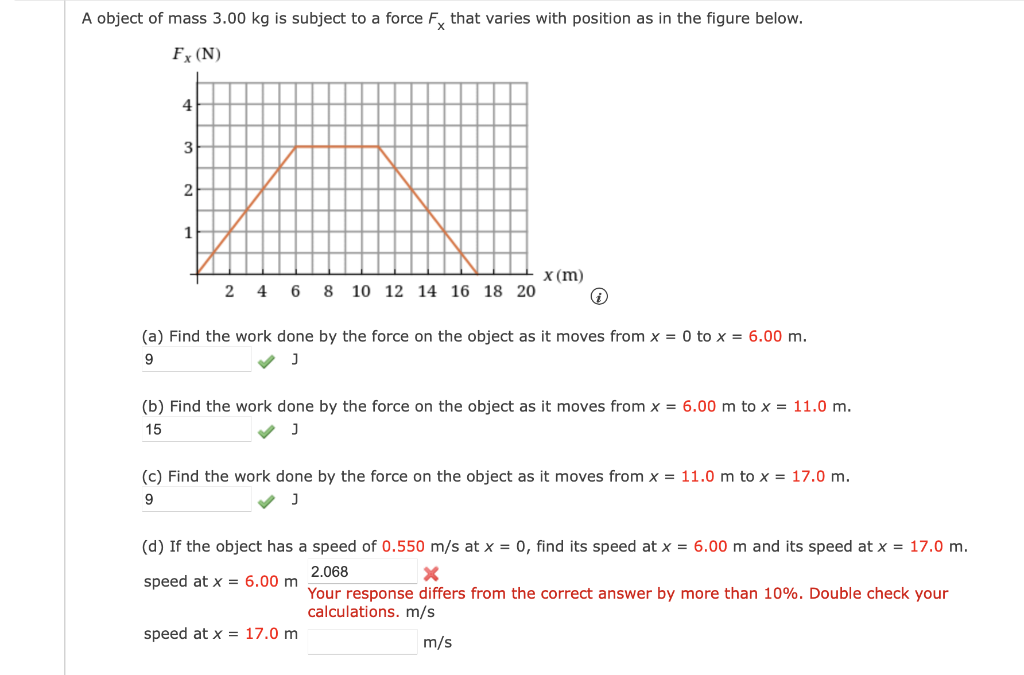

A object of mass 3.00 kg is subject to a force F that varies with position as in the figure below. Fx (N) 4 3 2 1 2 4 6 8 10 12 14 16 18 20 x (m) i (a) Find the work done by the force on the object as it moves from x = 0 to x = 6.00 m. 9 J (b) Find the work done by the force on the object as it moves from x = 6.00 m to x = 11.0 m. 15 (c) Find the work done by the force on the object as it moves from x = 11.0 m to x = 17.0 m. 9 J (d) If the object has a speed of 0.550 m/s at x = 0, find its speed at x = 6.00 m and its speed at x = 17.0 m. 2.068 X speed at x = 6.00 m Your response differs from the correct answer by more than 10%. Double check your calculations. m/s m/s speed at x = 17.0 m
